Disc stack centrifuge performance depends on several factors that are internal and external. Internal factors are those which are related to the centrifuge and the process fluid.

We will discuss the external factors here. You can also read our blog about internal factors that affect centrifuge efficiency.

1. Ambient Temperature

The ambient temperature of the centrifuge location affects the performance of the centrifuge in a few ways. Colder environments are detrimental to centrifuge performance. This effect is exacerbated if the process fluid is temperature-sensitive.

Physical Effects on Centrifuge Mechanics

Extreme ambient temperature affects the centrifuge in a few ways. One is the effect of temperature on the internal centrifuge lubrication.

The temperature of the operating water and clogging of the centrifuge passages by process fluid constituents are other possible effects.

Lubricating Oil Viscosity

In colder environments, the viscosity of the lubricating oil in the centrifuge gearbox increases. The viscous lube oil increases the resistance to the gear motion. As a result, the motor's current draw increases, which may also cause the motor to heat up.

The heat generated by the centrifuge operation gradually increases the lubricating oil's temperature and reduces the viscosity. With the lower lube oil viscosity, the motor current draw typically falls back into the normal operating range.

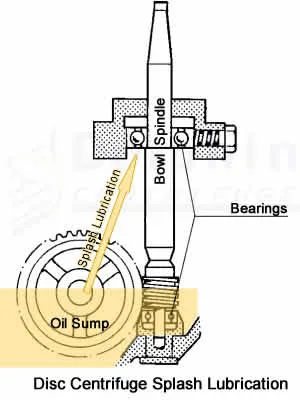

Disc Centrifuge Splash Lubrication system showing oil distribution in gearbox
Disc Centrifuge Splash Lubrication System

It is important to note that the centrifuge incorporates a splash lubrication system that relies on the lubricant's viscosity. The thicker lubricant in cold environments may affect the lubrication of the centrifuge bearings.

As mentioned above, the friction between the gears and other components generates heat in the gearbox. High ambient temperatures can overheat the lubricant, leading to the transmission components' premature failure, including the bearings and gears.

Operating Water Temperature

As explained in our articles on centrifuge operating water systems, the centrifuge's hydraulic mechanism requires the water to be in a fluid state. Sub-zero temperatures will freeze the operating water and prevent the centrifuge from working as intended. Therefore, the user should never operate the centrifuge in sub-zero ambient temperatures.

Cold operating water also has a cooling effect on the centrifuge bowl. If the process fluid is temperature-sensitive, the cold water will have a cooling effect on the process fluid. The cooling will increase the fluid's viscosity, adversely affecting the separation efficiency and centrifuge performance.

Gelling of Process Fluid Constituents

In some applications, the process fluid carries components that gel at lower temperatures. For example, in crude oil processing, paraffin is often present in crude oil. At lower temperatures, this paraffin becomes solid and sticks to narrow internal bowl passages. This accumulation of the paraffin causes a restriction of the fluid flow affecting the centrifuge performance.

It is necessary to remove these restrictions by flushing the bowl with hot water or a solvent in such applications. This extra step further affects centrifuge performance and uptime.

2. Type of Feed Tank

Industrial centrifuges perform optimally when the process fluid is homogeneous. This homogeneity means that the process fluid is consistent in the proportion of the contaminants. In other words, process fluid fed from an agitated tank is highly desirable.

Conversely, cone bottom or other types of settling tanks are not suitable as feed tanks for disc-stack centrifuges. The cone bottom tank design is to collect the solids via gravity separation. So, if the process fluid comes to the disc-stack centrifuge from such a tank, it is likely that the initial fluid will carry large amounts of settled sludge.

This glut of solids will cause the disc-stack to get packed with solids and effectively render the centrifuge unable to process.

Ideally, a centrifuge feed tank should be a flat bottom tank with constant agitation. The agitation keeps the solids in suspension, avoiding the issue mentioned above.

3. Location of Feed Tank

Industrial centrifuge users often feed the centrifuge from a feed tank located outdoor. In colder climates, the outdoor location cools down the process fluid quickly. Again, this affects the centrifuge performance for temperature-sensitive fluids that become more viscous at lower temperatures.

We recommend an indoor local feed tank in the vicinity of the centrifuge. This tank uses less energy to keep warm and therefore increases the total process efficiency. The tank capacity should be adequate to supply the centrifuge with the required amount of fluid for the anticipated batch.

4. Location of Discharge Tank

The location and elevation of the discharge or clean fluid collection tank are crucial. A remotely located collection tank has a few disadvantages that affect centrifuge performance.

Centrifuge Back Pressure

Most disc-stack centrifuges discharge the clean fluid under pressure through an internal paring disc pump. Considerable pressure is required to transfer the processed fluid to a remote tank. This transfer-related pressure exerts back pressure on the centrifuge. Excessive back pressure affects the performance of the centrifuge.

Climate Effect on Discharge Piping

If the discharge tank location is outdoor, the colder climates' external temperature cools down the process fluid. This cooling increases the viscosity of oils, exerting pressure on the centrifuge.

Under such conditions, the insulation and heat tracing of the discharge piping is desirable.

5. Discharge Tank Connection Location

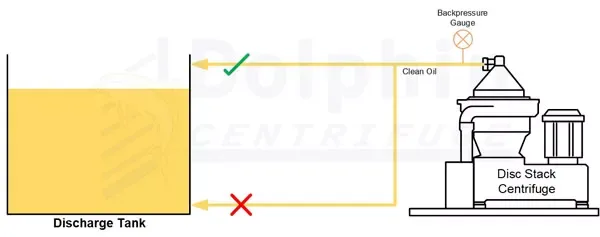

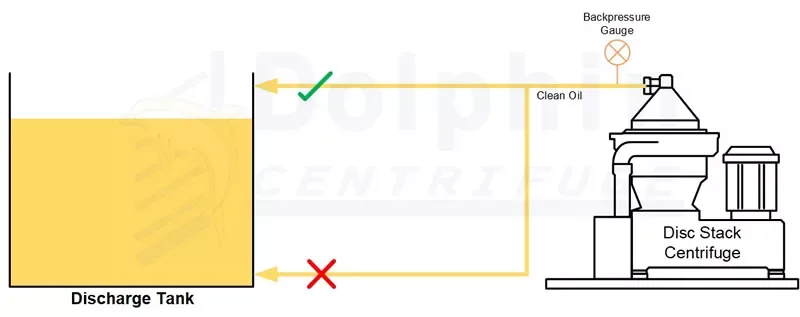

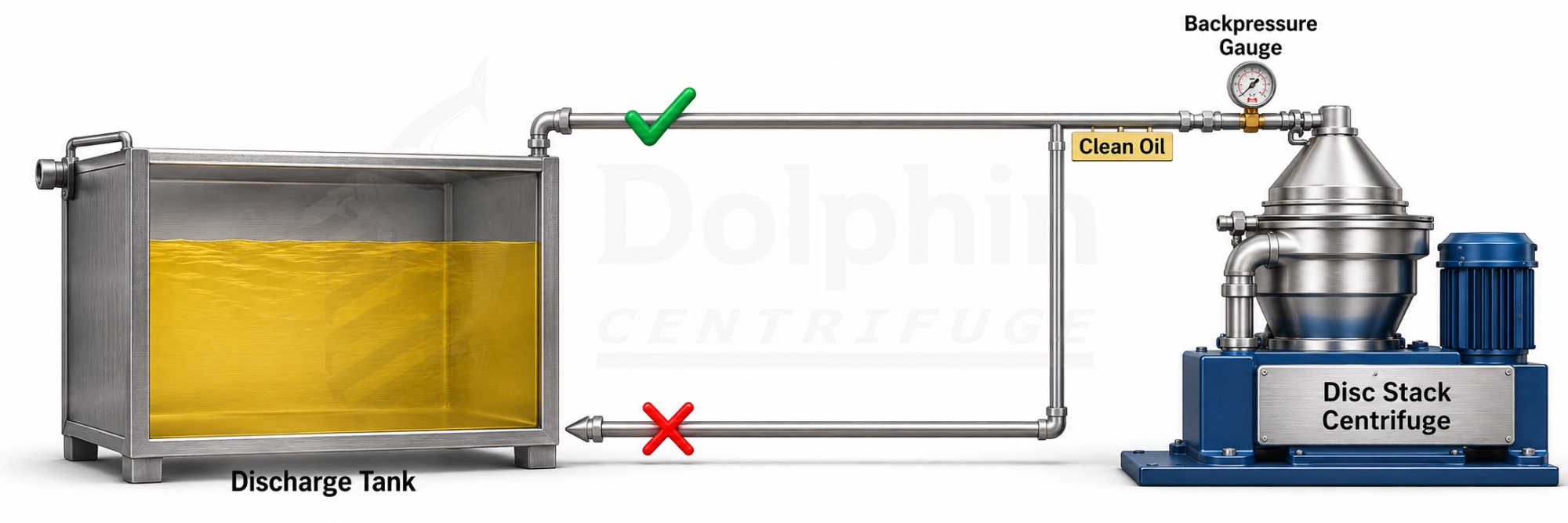

Disc Centrifuge Correct Discharge Tank Setup - top connection vs bottom connection
Disc Centrifuge — Correct Discharge Tank Setup

As previously explained, disc centrifuges work best under consistent operating conditions. The connection between the discharge pipe and the discharge tank is often overlooked.

Connecting the discharge pipe to the bottom of the collection tank is easy to install. However, this location is not desirable for centrifuge performance.

A discharge connection to the tank bottom will create pressure in the discharge pipe based on the tank's fluid level. With the changing fluid level, the backpressure in the discharge pipe will also change. Disc-centrifuge performance is affected by back pressure.

Therefore, a discharge pipe connected to the tank bottom is unsuitable for optimal centrifuge performance.

The centrifuge discharge pipe ideally connects to the top of the discharge tank. In this configuration, the pressure exerted by the fluid in the pipe remains constant and does not affect centrifuge operation.

Correct: Top Connection

Discharge pipe enters the top of the tank. Pressure in the pipe remains constant regardless of tank level. Ensures consistent centrifuge operation.

Incorrect: Bottom Connection

Discharge pipe enters the tank bottom. Backpressure varies with fluid level. Causes inconsistent separation and potential breakover.

6. Feed Tank Agitation

Homogenous process fluid ensures optimum centrifuge performance, as explained previously. The simplest way is to mix the process fluid through agitation. A supply tank fitted with an industrial agitator serves this purpose effectively.

A top-mounted paddle mixer rotating at a low RPM is ideal for keeping the solids in suspension.

7. Type of Feed Transfer Pump

We recommend positive displacement pumps for feeding disc-stack centrifuges. These types of pumps do not churn the liquid and thus avoid the creation of emulsions.

Gear pumps or progressive cavity pumps are best suited for feeding centrifuges.

Centrifugal pumps churn the fluid, possibly creating undesirable emulsions in certain types of oil-water mixes.

Air diaphragm pumps create pressure pulses in the feed liquid. This pulsation affects the liquid-liquid interface in the bowl affecting centrifuge performance. Therefore, air diaphragm pumps are also not recommended for disc centrifuges.

Pump Type Suitability Notes
Gear PumpRecommendedSmooth, non-pulsating flow; does not create emulsions
Progressive CavityRecommendedIdeal for viscous fluids and fluids with suspended solids
Centrifugal PumpNot RecommendedChurns the fluid, can create emulsions in oil-water mixtures
Air Diaphragm (AODD)Not RecommendedPressure pulsations disturb the liquid-liquid interface in the bowl

8. Sludge Tank

Disc-stack centrifuges discharge the sludge through the bottom of the frame. The sludge ejection is in a downward direction under gravity. The following factors related to the sludge collection tank affect centrifuge performance.

Venting

The high centrifugal force within the centrifuge bowl causes a pressure pulse to accompany the discharged sludge. Therefore, venting the sludge tank is crucial to allow this pressure to escape into the atmosphere.

A sealed sludge tank can cause the ejected sludge to deflect back into the centrifuge. The deflected sludge accumulates in the bowl operating cavity and interferes with the bowl opening mechanism affecting the centrifuge's performance.

In worst-case scenarios, the pressurized sludge can cause the sludge tank to explode, causing equipment damage and possible operator injury.

Location

The centrifuge ejects the sludge through the frame bottom downward. Therefore, the ideal sludge tank location is directly under the centrifuge.

Connection

Given that the ejected sludge comes out at significant velocity, it is best to avoid obstructions such as bends or size reductions in the sludge outlet chute. In other words, the sludge tank connection hose should be of uniform cross-section and in a vertical position.

For detailed guidance on internal efficiency factors, read our companion article on 5 Ways to Increase Disc Stack Centrifuge Efficiency.

by Sanjay Prabhu MSME, Centrifuge Applications Engineer, Dolphin Centrifuge

Is poor installation hurting your centrifuge performance?

Dolphin Centrifuge engineers can evaluate your current setup — tank placement, pump type, backpressure, sludge tank venting — and identify the root cause of underperformance.

Frequently Asked Questions

What external factors affect disc stack centrifuge performance? +
The 8 main external factors are: (1) feed temperature — lower temps increase viscosity and reduce efficiency, (2) feed tank agitation — settled feed creates sludge spikes that disrupt operation, (3) feed pump selection — incorrect type causes pulsation or cavitation, (4) pre-filtration — oversized particles contaminate the centrate, (5) discharge piping back-pressure, (6) sludge ejection cycle timing, (7) operating water quality and pressure, (8) ambient temperature affecting gearbox oil viscosity and feed properties.
How does feed temperature affect centrifuge separation performance? +
Feed temperature determines the viscosity of the liquid being separated. Lower viscosity (higher temperature) allows centrifugal force to move particles more rapidly. For every 10°C reduction in temperature, viscosity typically increases 10–20%, reducing separation efficiency proportionally. Heavy oils must be heated to 180–200°F. Even water-based coolants benefit from operating above 70°F for optimal sub-micron particle removal.
Why does feed tank agitation matter for centrifuge performance? +
Without agitation, sludge settles to the bottom and the centrifuge receives alternating clean liquid (from the top) and highly concentrated sludge (from the bottom). These concentration spikes overload the bowl's sludge space causing premature filling, liquid seal instability, and inconsistent centrate quality. A properly sized agitator keeps sludge uniformly suspended throughout operation.
What back-pressure is acceptable on a disc centrifuge centrate outlet? +
Acceptable centrate back-pressure is typically 0–15 PSIG on the light phase outlet and 0–10 PSIG on the heavy phase outlet. Excessive back-pressure compresses the liquid seal ring and can cause seal break. Back-pressure is created by long or undersized centrate piping, elevation changes, flow control valves, and downstream equipment resistance.
Why should the sludge tank under a disc centrifuge be vented? +
During sludge ejection, the high centrifugal force creates a pressure pulse with the discharged sludge. A sealed sludge tank traps this pressure and causes ejected sludge to deflect back into the centrifuge bowl, interfering with the bowl opening mechanism. In worst-case scenarios, pressure buildup can rupture the tank, causing equipment damage or operator injury. Always vent the sludge tank to atmosphere.
