Dolphin Centrifuge supplies parts, repairs, and remanufactured Alfa Laval WSPX 207 self-cleaning 3-phase disc stack centrifuges rated at 20 GPM, generating over 6,500 Gs at 6,300 RPM with all stainless steel wetted parts. Ideal for coolant recovery, tramp oil removal, and wash water deoiling. Warren, Michigan — over 40 years of experience.
WSPX 207 Operation

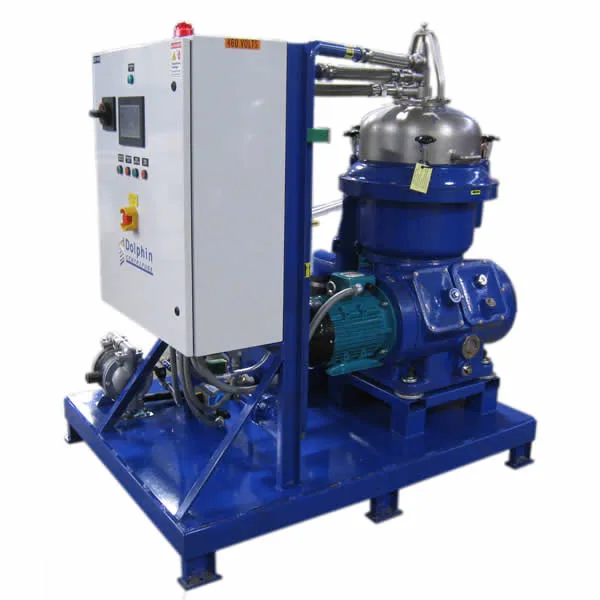

The Alfa Laval WSPX 207 is a 3-phase disc stack centrifuge designed to separate tramp oil and small particles from machine coolant. The centrifuge bowl rotates at 6,300 RPM exerting over 6,500 Gs of centrifugal force. This 3-phase centrifuge features all stainless steel wetted parts with automatic sludge discharge capability.
The WSPX 207 is perfect for the recovery of water-based coolants, semi-synthetic and synthetic, deoiling of wash water, and high or low pH chemical separation applications. With a rated capacity of 20 GPM, the WSPX 207 is the entry-level model in the WSPX series. Its compact footprint allows installation directly adjacent to CNC machining centers or grinding cells.
WSPX 207 Specifications
| Model Type | Alfa Laval WSPX 207 TGP-74 |
| Rated Capacity | 20 GPM |
| Sludge Space | 0.82 Gallons |
| Bowl Type | Self-Cleaning (Automatic Discharge) |
| Separation Type | 3-Phase (Liquid-Liquid-Solid) |
| Bowl Speed | 6,300 RPM |
| G-Force | 6,500+ Gs |
| Motor HP | 7.5 HP |
| Voltages | 230 / 460 V; 3-Phase |
| Wetted Parts | All Stainless Steel |
Need parts, repairs, or a remanufactured WSPX 207?
Dolphin Centrifuge supplies the WSPX 207 along with parts, rebuild services, and application support. Not sure if it fits your coolant system? Sample testing is available to validate performance.
Request a Quote →Applications
- • Machining coolant recovery (water-based, semi-synthetic, synthetic)
- • Cutting oil clarification
- • Metal fines removal from grinding fluid
- • Tramp oil separation from water-based coolant
- • Deoiling of wash water
- • CNC machining center coolant systems
- • Grinding and honing fluid recovery
- • Washer liquid clarification
- • High or low pH chemical separation
- • Small-volume central coolant systems
Not sure if the WSPX 207 is right for your application? Dolphin Centrifuge offers sample testing to evaluate separation performance before purchase. For help choosing between disc stack models, see our disc stack centrifuge FAQ. Our repair and rebuild services keep your WSPX running at peak efficiency.
WSPX Series — Model Comparison
The WSPX 207 is the entry-level model in the WSPX line. For higher-volume coolant systems, Dolphin also supplies the WSPX 303, WSPX 307, and WSPX 407 (25 GPM top model).
WSPX 207 — Current
20 GPM. Compact footprint for individual machine or small cell installations.
WSPX 303
8 GPM. Mid-size model for central coolant systems and larger machining operations.
WSPX 307 / 407
22–25 GPM. High-volume models for automotive and aerospace production facilities.
Learn more about coolant centrifuge systems and ROI →
What is the Alfa Laval WSPX 207 used for? ▼
The WSPX 207 is a compact self-cleaning disc stack centrifuge for water-based coolant and metalworking fluid processing at 20 GPM. It continuously removes sub-micron metal fines and tramp oil from coolant without interrupting fluid flow, making it ideal for point-of-use installation at individual CNC machining centers or grinding cells.
How does the WSPX 207 discharge accumulated solids? ▼
The WSPX 207 uses a self-cleaning bowl that discharges accumulated metal fines and tramp oil sludge at preset intervals via hydraulically operated discharge valves — without stopping production or requiring manual intervention. This allows continuous unattended operation in production environments.
What is the difference between the WSPX 207 and the WSPX 303? ▼
The WSPX 303 is the larger mid-size model with 8 GPM throughput, suited for central coolant systems serving multiple machines. The WSPX 207 is the entry-level model at 20 GPM on a more compact frame, designed for point-of-use installation at a single machining center. Choose the WSPX 303 for central coolant systems; the WSPX 207 for individual machine installations.
What G-force does the WSPX 207 generate? ▼
The WSPX 207 bowl rotates at 6,300 RPM generating over 6,500 Gs of centrifugal force. All wetted parts are stainless steel, making it suitable for high or low pH coolant and chemical separation applications.
Can Dolphin Centrifuge supply parts or rebuild the WSPX 207? ▼
Yes. Dolphin Centrifuge supplies genuine and compatible replacement parts for the WSPX 207, including disc stacks, seals, bearings, and discharge valve components. Complete bowl rebuilds and remanufactured WSPX 207 centrifuges are available. Contact us for parts availability and service scheduling.
Parts, Repairs & Remanufactured WSPX 207
Contact Dolphin Centrifuge for pricing, availability, and application evaluation. Sample testing available for qualifying applications.
