30 Second Summary Takeaway
A machine coolant centrifuge is a disc stack centrifuge that cleans water-based, synthetic, and semi-synthetic machining coolant by removing tramp oil and fine metal sediment without breaking the coolant emulsion. The centrifuge applies more than 7,000 Gs, causing metal particles down to about 1 micron to collect at the bowl wall while clean coolant exits continuously. Coolant centrifuges reduce coolant disposal, improve product quality, reduce bacterial contamination, and lower filtration burden, but they require capital investment, maintenance, and auxiliary utilities such as operating water.
What is Machining Coolant?
Industrial operations with machining operations such as metal cutting, grinding, milling, etc., use coolants for product consistency and operational durability. Therefore the quality of the machining coolant is an essential factor for efficient machining operations.
Many companies do not continually measure the contamination levels in their machining coolants. They have learned by trial and error that no problems will occur in the following machining stages by changing the coolant once a month or so.
Changing coolants just because they are dirty is an old-fashioned approach. It is also a messy and time-consuming task. With an industrial fluid centrifuge, you can control the contamination in the coolant tank.
There are many benefits to having a Clean Machining Coolant.
Coolant Centrifuge
A machining coolant centrifuge is an industrial disc centrifuge that effectively removes tramp oil and sediment from the coolant continuously. It is a mechanical separator that uses centrifugal force to separate water-based coolants from denser metal particles.
Operation
A machine coolant centrifuge exerts a very high centrifugal force of over 7,000 Gs on the contaminated coolant. As a result, the small metal particles (down to 1 micron) accumulate on the bowl wall from where they are self-ejected.
The lighter coolant (free of contaminants) exits the centrifuge continuously through the fluid outlet passage.
Advantages of a coolant centrifuge:
- Savings: Centrifuge allows re-use of machining coolant.
- Disposal: Recycling reduces disposal costs considerably.
- Quality: Cleaner coolant leads to higher quality finished products.
- Reliability: Contaminant removal leads to the durability of process equipment.
- Health: Reduces bacterial contamination, which can cause health issues.
In summary, an industrial fluid centrifuge offers several advantages, especially for the larger-scale handling of cutting fluids.
Disadvantages
Despite the advantages listed above, there are certain disadvantages to centrifuges for coolant recycling. The following are some of the limitations of centrifuges.
- Capital Cost: Coolant centrifuges are capital-intensive equipment. Though their payback period is relatively short, the initial cost can be daunting to first-time customers.
- Sophisticated Construction: An industrial centrifuge is a high-speed machine with intricate moving parts. It is a mechanical separating machine that requires maintenance. Comparatively, a filter is much simpler to operate than a centrifuge. See our disc centrifuge parts glossary for an overview of key components.
- Auxiliary Utilities Needed: A self-cleaning centrifuge requires clean, potable water to operate the sludge ejection system. In addition, a centrifuge may also require compressed air (for sludge pumps). Filters don't need these additional utilities.
Specifications
The following table summarizes the specifications of a typical, medium-capacity coolant centrifuge.
| Specification | Value |
|---|---|
| Centrifuge Model | Alfa Laval WSPX-307TGD-71G |
| Centrifuge Type | High-Speed, Self-Cleaning, Disc Stack |
| Coolant Processing Capacity | 28 GPM* |
| Bowl Speed | 8,375 RPM |
| Motor HP | 10 HP |
| Max. Solids | 32 Gal/ Hr |
| Weight | 1,500 Lbs |
| Dimensions | 30" x 52" x 54" (H) |
Sizes
Coolant centrifuges are available in different sizes, catering to customers with a small or large volume of water-based coolant to purify. The following table gives the nominal processing capacities of centrifuge models available from Dolphin Centrifuge.
| Centrifuge Model | Capacity on Coolant | Sludge Handling* |
|---|---|---|

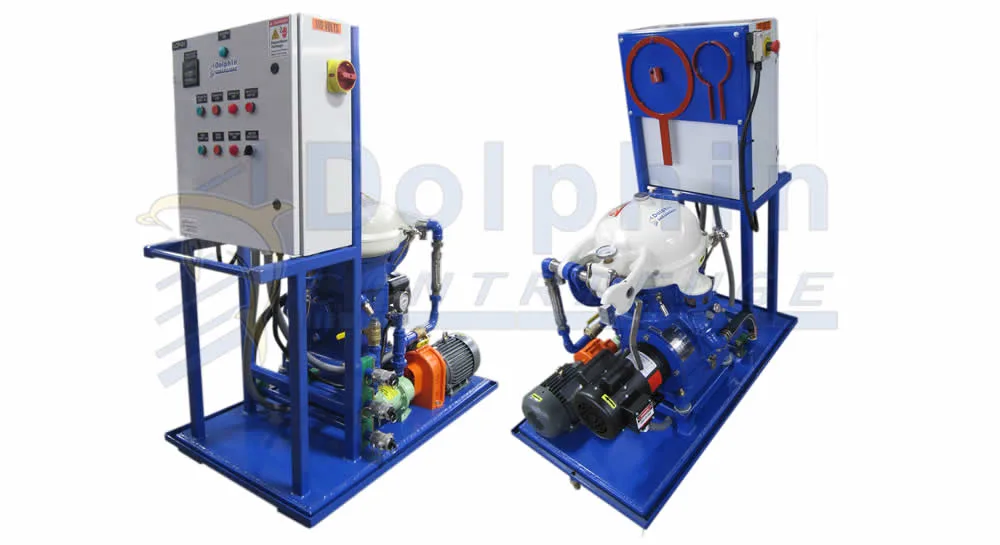

| Alfa Laval WSB-104 | 3 GPM | Manual Clean |

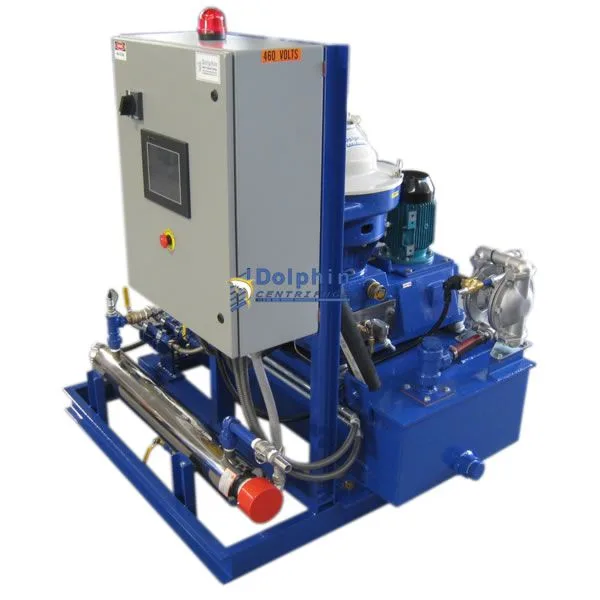

| Alfa Laval WSPX-303 | 3 GPM | Self-Cleaning |
| Alfa Laval MAB-206 | 12 GPM | Manual Cleaning |

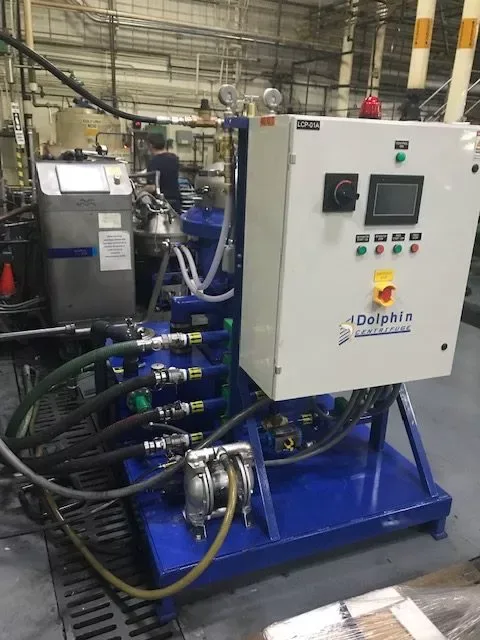

| Alfa Laval WSPX-207 | 20 GPM | Self-Cleaning |
| Alfa Laval WSPX-307 | 28 GPM | Self-Cleaning |
| Alfa Laval WHPX-510 | 32 GPM | Self-Cleaning |
| Alfa Laval MAB-209 | 40 GPM | Manual Clean |
| Alfa Laval WHPX-513 | 50 GPM | Self-Cleaning |
* Manual Clean = Operators need to stop and remove separated sludge.
Self-Cleaning = Centrifuge automatically ejects separated sludge without stoppage.
Frequently Asked Questions
Will a centrifuge break the water based emulsified coolant?
Can a standard disc-stack centrifuge operate as a machine coolant centrifuge?
Can a coolant centrifuge be adjusted to produce pure coolant or pure tramp oil?
Is the centrifuge effective for the separation of coolant at ambient temperature?
What is the consistency of the separated sediment ejected from a coolant centrifuge?
Is a coolant centrifuge a drop-in replacement for a belt-filter system?
Can a coolant centrifuge operate at 220 Volts, single-phase power?
Can a disc stack centrifuge recovery synthetic or semi-synthetic coolant?
What is Tramp Oil?
Water-based coolants get contaminated with oil from hydraulic machinery, metal coating, machine tools, etc. This oil accumulates in the coolant forming a floating layer known as tramp oil.
Problems associated with Tramp Oil
The following list of common problems associated with tramp oil in coolants.
- Health Issues: Tramp oil floats on top of the water-based coolant, which causes anaerobic bacteria to grow. This bacterial growth is the cause of health issues such as dermatitis for machine operators.
- Product Quality: When Coolants are contaminated with tramp oil, they lose some of their lubrication and cooling properties.
- Equipment Issues: Tramp oil causes reliability problems for auxiliary equipment that works with machine tools using coolants such as pumps, filters, etc.
Tramp Oil Centrifuge
A tramp oil centrifuge is an industrial, 3-phase centrifuge designed to separate tramp oil from water-based coolants. It is a pass-through type of centrifuge that can separate the tramp oil from the coolants producing fresh, reusable machining coolant.
Operation
A high-speed, disc-stack centrifuge produces over 7,000 gravity forces to continuously separate the tramp oil and solid particles from the machining coolant. The high g-force forces the heavy metal sediment to the bowl wall,
It also concentrates the light tramp oil in the rotating bowl's center, which comes out of the center fluid passage; the clean coolant discharges through the outer fluid passage.
Specifications
| Specification | Value |
|---|---|
| Centrifuge Model | Alfa Laval WSPX-303-TGP-34 |
| Centrifuge Type | High-Speed, Self-Cleaning, Disc Stack |
| Lube Oil Capacity | 2 GPM |
| Coolant Capacity | 3 GPM* |
| Bowl Speed | 8,500 RPM |
| Motor HP | 3 HP |
| Voltage | 230 / 460; 3-Phase |
| Weight | 1,500 Lbs |
| Size | 36" x 48" x 50" (H) |
Have you heard of pasteurizing machining coolant? It helps eliminate the bacteria in coolants. Read our detailed article about machining coolant recovery using a disc centrifuge and pasteurization.
For real examples of how pilot testing reveals coolant and tramp oil separation behavior, see our anonymized sample testing case studies.

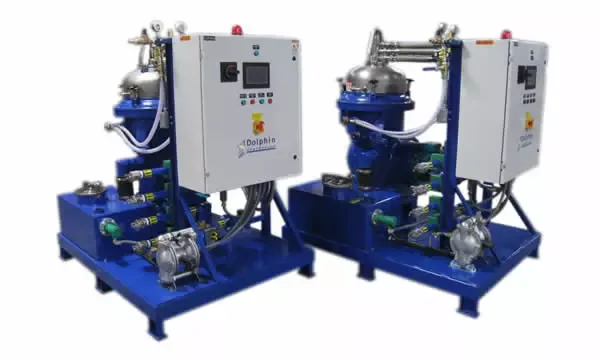

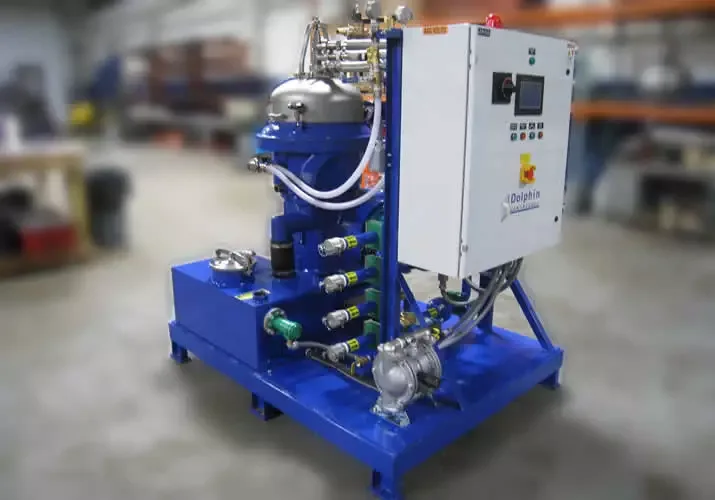

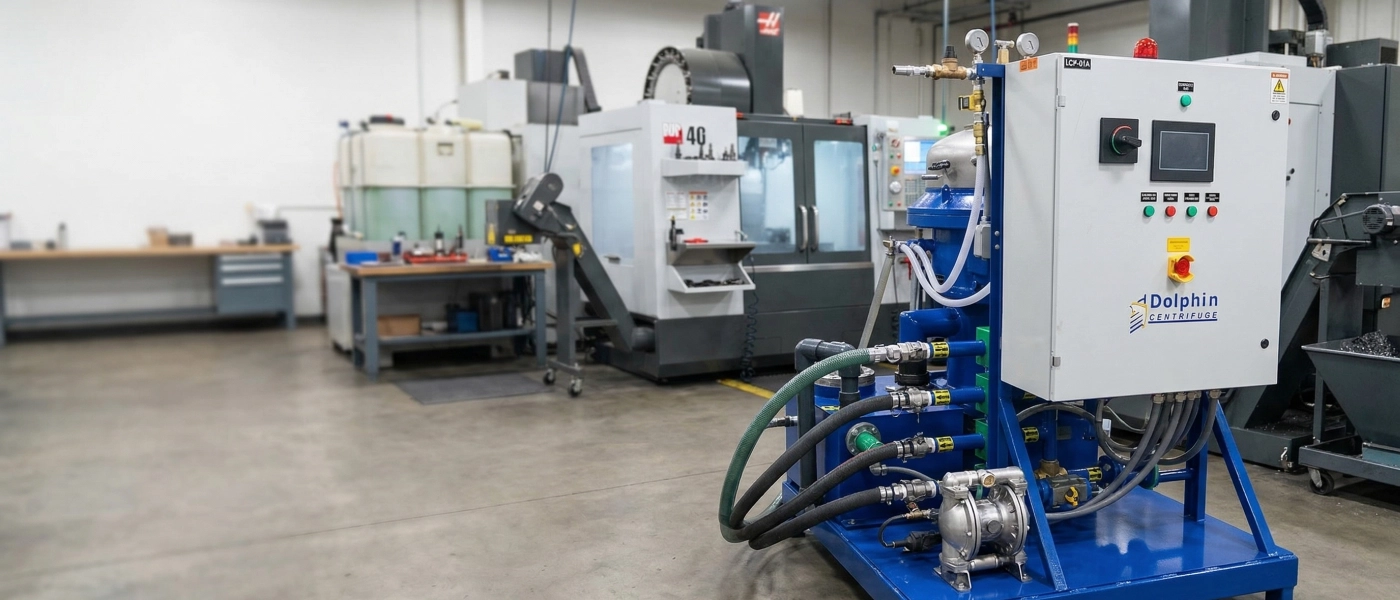

Coolant Centrifuge Photo-Gallery
