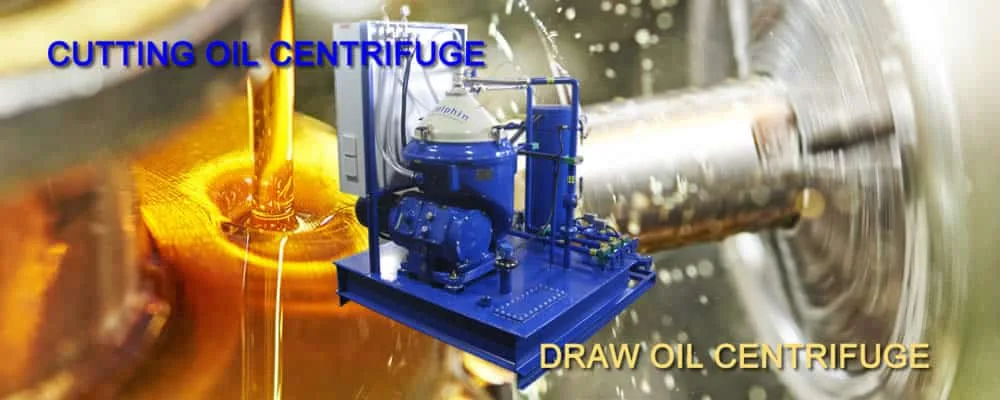

Dolphin Centrifuge provides turnkey disc stack centrifuge systems for cutting oil, quench oil, and neat metalworking fluid purification. Operating at 5,000–8,000 G, these systems remove metal swarf, grinding dust, scale, and moisture at 5–30 GPM — extending fluid life by 3–5x and eliminating costly batch replacements. Based in Warren, Michigan, with 40+ years of metalworking fluid separation experience.
Oil-Based Fluid Purification Overview
Industrial oil-based fluids — including cutting oils, quench oils, and neat metalworking fluids — degrade over time as they accumulate metal fines, grinding dust, scale, and moisture. A disc stack centrifuge continuously removes these contaminants, restoring fluid clarity and performance without costly full-batch replacements.
Dolphin Centrifuge provides turnkey centrifuge systems engineered specifically for oil-based fluid purification. Our systems process 5–30 GPM and handle viscosities typical of straight oils and soluble oil concentrates used across CNC machining, heat treatment, and metal forming operations.
Application Areas
Cutting Oil Centrifuge
Metalworking Fluid Purification
Purify straight cutting oils and neat oils used in precision machining. Remove metal swarf, grinding dust, and moisture to maintain surface finish quality.
Quench Oil Filtration
Heat Treatment Oil Recovery
Maintain quench oil clarity and thermal performance by removing scale, carbon, and oxidation byproducts for consistent heat-treated components.
How Centrifugal Oil Purification Works
A disc stack centrifuge spins contaminated oil at high G-force, separating solids and water from the clean oil phase. Unlike filters that clog and require frequent element changes, centrifuges operate continuously with minimal consumables. The separated sludge is ejected automatically, while purified oil returns to the machine sump or reservoir.
For metalworking applications, this means uninterrupted production. Dolphin systems can be configured as inline units processing oil directly from machine sumps, or as kidney-loop systems that continuously polish a central reservoir. Our service team provides full installation support and ongoing maintenance.
Key Benefits
- Extended fluid life — Reduce oil replacement frequency by 3–5x, cutting procurement and disposal costs significantly.
- Improved part quality — Clean cutting fluid means better surface finishes, tighter tolerances, and fewer rejects.
- Lower disposal costs — Less spent oil means fewer hazardous waste pickups and lower regulatory burden.
- Reduced downtime — Continuous purification eliminates batch processing delays and filter change stoppages.
- Consistent thermal performance — Clean quench oil delivers uniform cooling rates for repeatable heat treatment results.
Tired of Frequent Oil Replacements and Disposal Costs?
Cutting oil centrifuge systems pay for themselves in 6–18 months. Send us a sample of your oil — we'll test it and size the right centrifuge to maximize your fluid life.
Choosing the Right System
System selection depends on oil viscosity, contamination type, and flow rate requirements. Light cutting oils with fine metal particles are well suited to the DMPX-028, while higher-volume operations or heavier quench oils may require the DMPX-042. Dolphin offers sample testing to determine the optimal configuration for your specific fluid.
Contact our engineering team at (248) 522-2573 or request a quote to discuss your oil-based fluid purification needs.
Frequently Asked Questions
What contaminants does a centrifuge remove from cutting oil?
A disc stack centrifuge removes metal swarf, grinding dust, fine particles, scale, and moisture from cutting oils. Operating at 5,000–8,000 G, it captures particles below 1 micron that conventional cartridge filters miss — restoring cutting oil to near-virgin clarity and maintaining the surface finish quality required for precision machining.
How does centrifuge purification improve heat treatment quench oil performance?
Quench oil accumulates scale, carbon, and oxidation byproducts from repeated heating and quenching cycles. These contaminants reduce thermal conductivity and create hot spots that cause inconsistent part hardness. A centrifuge removes these contaminants continuously, restoring the uniform thermal performance needed for repeatable heat treatment results.
Can I use a centrifuge for neat (straight) cutting oil?
Yes. Neat cutting oils (non-emulsified straight oils) are ideal candidates for centrifuge purification. The centrifuge removes metal fines and moisture without disturbing the oil's chemistry. Dolphin Centrifuge systems process viscosities typical of most straight cutting oils without heating, though heated inlet lines may improve efficiency for very high-viscosity grades.
How often does a cutting oil centrifuge need maintenance?
Self-cleaning disc stack centrifuges (DMPX series) automatically eject sludge on a timed cycle and require minimal maintenance — typically a scheduled inspection every 6–12 months. Manual-clean models require more frequent attention depending on contamination load. Dolphin Centrifuge provides full service support and parts for every system we sell.
What is the ROI for a cutting oil centrifuge installation?
Cutting oil centrifuge installations typically pay back in 6–18 months through reduced oil procurement costs, lower hazardous waste disposal fees, improved part quality, and reduced scrap. Customers commonly report oil replacement frequency dropping from monthly to every 3–5 years after installing centrifuge purification.
Cut Your Oil Costs by Up to 80%
Centrifuge purification for cutting oils and quench oils. 3–5x fluid life extension. Turnkey skid systems. Factory tested from Warren, MI.
