Dolphin Centrifuge diagnoses and corrects disc stack centrifuge separation failures. Operating at up to 8,000 G, disc centrifuges produce clean output when seven key parameters — gravity disc size, feed rate, temperature, disc condition, bowl speed, ejection timing, and emulsion control — are within specification. Based in Warren, Michigan, with 40+ years of centrifuge experience.
Summary: A disc stack centrifuge operating correctly under the right conditions will consistently produce clean, well-separated output. When separation quality deteriorates — oil in the water phase, water or solids in the oil phase, or generally cloudy discharge — the cause is almost never a spontaneous machine failure. Instead, it is a change in one or more operating parameters that has moved the centrifuge outside its design envelope. This guide addresses all major industrial centrifuge applications including marine fuel cleaning, industrial oil purification, food-grade oil processing, and wastewater treatment.
Diagnosis Flowchart Approach
Before investigating individual causes, answer these three questions to direct your diagnosis:
- When did separation quality change? Sudden change suggests a process or settings change. Gradual decline over weeks suggests wear or buildup.
- What changed recently? New product batch, different oil viscosity or density, changed feed rate, maintenance performed, or ambient temperature change — any of these can shift separation quality significantly.
- Which phase is contaminated? Water/heavy phase contaminated with oil points to a different cause than oil/light phase contaminated with water or solids.
Incorrect Gravity Disc (Interface Control)

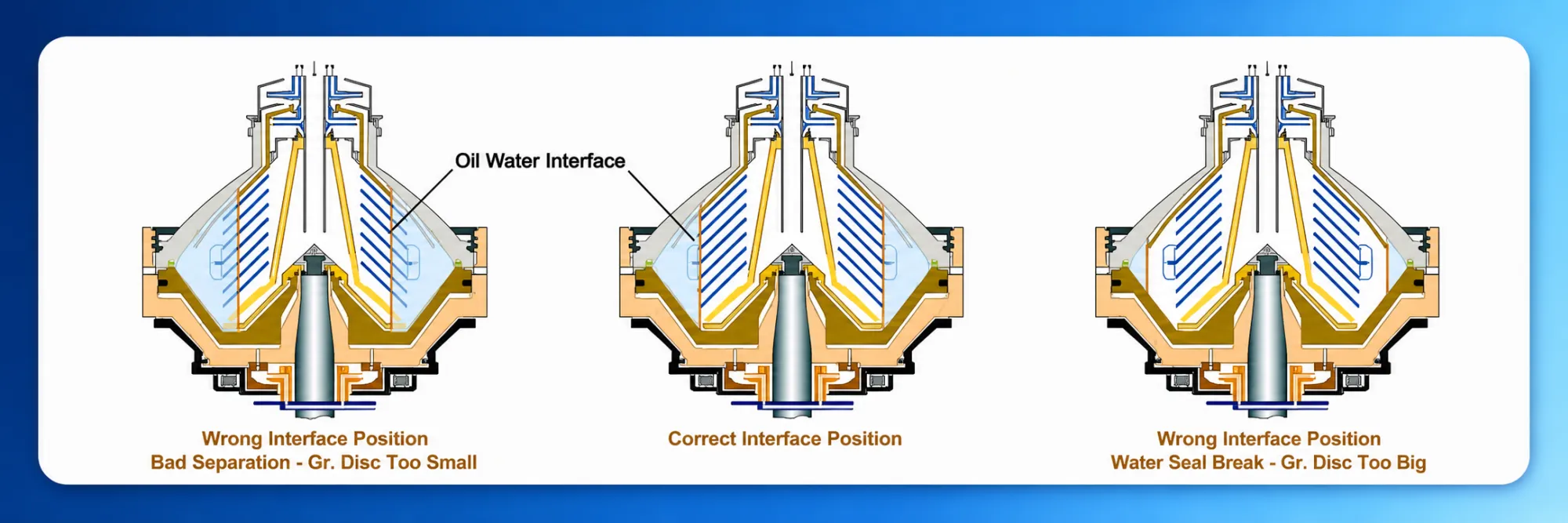

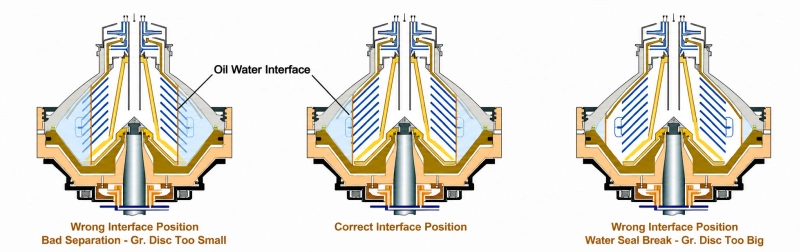

What a gravity disc does: The gravity disc in the centrifuge bowl regulates the oil-water interface within the centrifuge. For best separation results, the oil-water interface should be closest to the bowl periphery without breaking the water seal. This interface positioning allows maximum g-force exerted by the rotation to act on the separation interface. A gravity disc with a smaller hole size than the ideal one (as determined by the nomogram) pushes the oil-water interface radially inwards. This incorrect positioning of the interface causes bad separation. Most often, this is evident in the form of water being present in the clean oil phase.
Symptoms: Separation was good on a previous batch but is now poor on a new batch. Water content in the oil phase is high. Oil is appearing in the water discharge (carry-over). The problem appeared after a product change, not after maintenance.
Diagnosis: Check the specific gravity of the current process fluid against the gravity disc selection chart in the machine manual. If processing a new oil grade or batch with different density characteristics, the gravity disc may need to change. Measure oil specific gravity at operating temperature with a hydrometer or density meter.
Fix: The correct gravity disc (as indicated by the nomogram) will provide the best separation result. Using the gravity disc with the largest hole size (without breaking over) is the right way to fix this unsatisfactory separation. Most machines come with a set of gravity discs covering a range of densities. Document the correct gravity disc selection for each product to avoid this issue on future batch changes.
Wrong Feed Rate (Over-Feeding)
Failure mode: Every disc centrifuge has a maximum rated throughput (flow rate) for a given application. When the feed rate exceeds the machine's processing capacity, the residence time of fluid in the disc stack decreases below the minimum required for effective separation. Solids and droplets that would normally settle and be captured are carried through with the product.
Symptoms: Separation quality degrades when throughput is increased. Quality improves when flow rate is reduced. Output becomes turbid or shows visible contamination. The machine runs without any mechanical fault indication.
Diagnosis: Measure actual feed flow rate and compare against the rated capacity for the specific fluid and application. Note that rated capacity varies with fluid viscosity — a machine rated at 1,000 L/hr for light mineral oil may only handle 400 L/hr effectively for a heavier, more viscous fluid.
Fix: Reduce feed rate to within the rated capacity. If throughput requirements have increased beyond the machine's capacity, consider adding a second centrifuge in parallel or upgrading to a larger model. Dolphin Centrifuge's sample testing service can verify the achievable throughput for your specific fluid.
Process Temperature Too Low

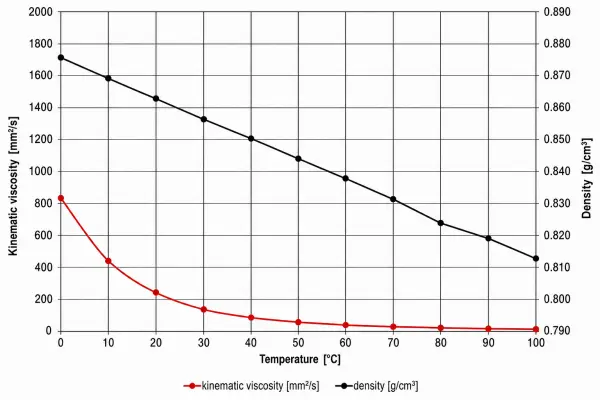

Failure mode: The viscosity of the process fluid is a key parameter affecting the separation efficiency. As explained in our guide on improving disc centrifuge efficiency, higher temperatures, especially for thick viscous fluids, reduce the fluid's viscosity. At lower temperatures, oil viscosity increases significantly, droplet rise velocity decreases, and separation becomes dramatically less effective. Water in cold oil is particularly difficult to separate because the oil's high viscosity impedes water droplet movement toward the bowl wall.
Symptoms: Separation quality is good in summer or warm conditions but deteriorates in winter or after the heater is turned off. Water content in the oil phase increases. Problem correlates directly with feed temperature.
Diagnosis: Measure actual feed temperature at the centrifuge inlet and compare against the recommended operating temperature in the machine manual. For fuel oils and lubricating oils, 60–95°C (140–203°F) is typically required. For vegetable oils, 60–75°C. For light mineral oils, 50–70°C.
Fix: Restore feed temperature to the recommended range. Check the feed heater (steam or electric) for correct operation. Inspect for scaling or fouling inside the heater that reduces heat transfer. Insulate feed piping to prevent heat loss between the heater and the centrifuge. Do not process cold, thick oils through the centrifuge — this is both ineffective and potentially damaging to the disc stack.
Worn or Fouled Disc Stack
Failure mode: In cases where the sludge discharge frequency is inadequate, sludge can accumulate in the bowl to enter the inter-disc space. This sludge blocks the flow path of the separating fluids. Blocked fluid pathways result in bad separation due to separated liquids' inability to exit the bowl per the design intent. Additionally, when discs are fouled with scale, organic deposits, or wax, the effective separation area is reduced and separation efficiency drops. Physically worn or damaged discs (warped, corroded, or cracked) disrupt the laminar flow pattern inside the disc stack, reducing separation quality directly. See also our guide on clogged centrifuge bowl discs.
Symptoms: Gradual decline in separation quality over months. Quality does not improve when other parameters (temperature, flow rate, gravity disc) are corrected. Machine history shows long intervals since last disc cleaning.
Diagnosis: Disassemble and inspect the disc stack. Deposits on the disc surfaces will be visible. Check for discs that are warped (will not lie flat), corroded (pitting or edge attack), or cracked. Count the discs and compare against the required disc count in the manual.
Fix: Clean discs using appropriate solvents or cleaning chemicals for the deposit type (alkaline cleaner for organic deposits, acid cleaner for mineral scale). Replace damaged discs. Ensure all discs are correct for the machine — using discs of the wrong angle, diameter, or thickness reduces separation efficiency. Dolphin Centrifuge supplies correct replacement disc sets for all major models.
Bowl Speed Low
Failure mode: Mechanical malfunction of the centrifuge can cause a reduction in the operating speed of the centrifuge. Lower operating speed leads to a reduced centrifugal force, which results in inadequate separation.
Fix: Identifying and correcting the mechanical cause of the reduced rotational speed typically fixes this problem. The following are the common causes of reduced centrifuge speed:
- Centrifuge Brake Engaged
- Friction Pads are Worn-out or Oil-coated
- Bowl Leaking
- Motor Malfunction
- Bearing Failure
- Incorrect Parts for Operating Power Frequency
Incorrect Ejection Timing (Over- or Under-Ejecting)

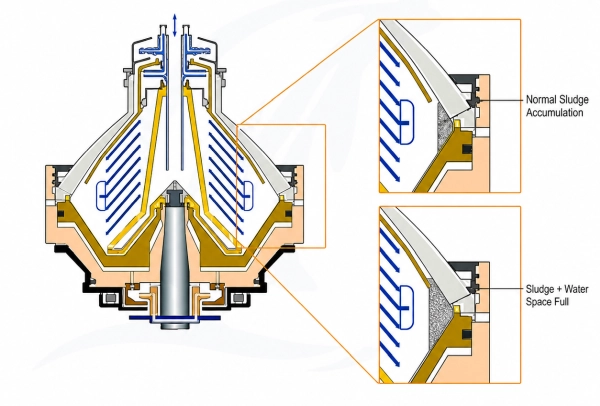

Failure mode (under-ejecting): When the sludge discharge cycle time is too long, the separated sludge fills the sludge space and the water space. This excess sludge effectively shuts off the heavy-phase (water) pathway to the water discharge outlet. Since the separated water cannot exit the bowl through the intended discharge port, it leaves with the separated oil, contaminating the clean oil and leading to bad separation results. Excess solids also begin to overflow into the disc stack, reducing effective separation volume and fouling the discs.
Failure mode (over-ejecting): If ejections are too frequent or the ejection volume is too large (total ejection), excessive product is lost with each discharge, and the liquid seal may be disturbed, allowing air ingress. Separation quality is inconsistent, with good quality interrupted by poor quality immediately after each ejection event.
Diagnosis: Monitor separation quality over time relative to the ejection cycle. Quality that declines between ejections then recovers indicates under-ejection. Quality that shows a sudden drop immediately after ejection and gradually improves indicates over-ejection or liquid seal disturbance.
Fix: Adjust ejection intervals to match the actual solids load in the feed. See the sludge ejection cycle timing guide for a systematic approach to setting optimal intervals. For variable feed solids content, consider turbidity-based automatic ejection control rather than timer-based control.
Feed Contamination or Emulsification
Failure mode: Disc centrifuges are designed to separate mechanical mixtures (droplets and particles suspended in a continuous phase). When the feed contains emulsifying agents — surfactants, detergents, soaps, or bio-emulsifiers — the oil and water form a stable emulsion that centrifugal force alone cannot break. No adjustment of centrifuge settings will resolve this; the emulsification must be addressed at the source.
Symptoms: Persistent poor separation despite correct temperature, gravity disc, flow rate, and a clean disc stack. The output is a stable emulsion rather than distinct oil and water phases. A simple bottle test (placing a sample in a clear bottle and allowing it to settle) shows little or no phase separation after 30 minutes at temperature.
Common emulsifiers found in centrifuge feeds:
- Detergent-contaminated fuel (from tank cleaning operations)
- Biodegraded oil (bacterial activity produces natural surfactants)
- Demulsifier overdose (paradoxically, excess demulsifier can re-stabilize an emulsion)
- Excessive agitation of the feed before entry to the centrifuge
- Alkaline process water contamination in lube oil service
Fix: Identify and eliminate the emulsification source. For biodegraded or contaminated batches, adding the correct dosage of a compatible demulsifier chemical upstream of the centrifuge can restore separability. Adjust demulsifier dose carefully — the correct dose must be determined by trial on a small sample before treating the full batch. Submit a sample to Dolphin Centrifuge's testing lab to evaluate treatability before processing a difficult batch.
Quick Reference: Symptom to Cause
| Symptom | Most Likely Cause |
|---|---|
| Water in oil after product change | Wrong gravity disc |
| Poor quality increases with throughput | Over-feeding (excess flow rate) |
| Seasonal or post-heater-failure decline | Feed temperature too low |
| Gradual decline over months | Fouled or worn disc stack |
| Reduced speed or mechanical fault indicators | Bowl speed low (mechanical malfunction) |
| Cyclic quality with ejection timing | Incorrect ejection interval |
| Persistent poor quality, nothing else explains it | Feed emulsification |
If separation quality problems persist after working through this guide, contact Dolphin Centrifuge for a process review. We can evaluate your fluid, machine configuration, and operating parameters to identify the root cause. Call (248) 522-2573 or email sales@dolphincentrifuge.com.
Related Disc Centrifuge Articles
Poor Separation? Let Our Engineers Diagnose It.
Send us a sample of your process fluid and we will test it in our Warren, Michigan facility to identify the root cause and recommend the right fix.
Frequently Asked Questions
Why is my disc stack centrifuge not separating properly?
Poor separation is typically caused by: wrong gravity disc size (incorrect back pressure), process fluid temperature too low (high viscosity), feed flow rate exceeding rated capacity, fouled or clogged disc stack, incorrect sludge ejection timing, or emulsifying agents in the fluid.
How does temperature affect disc centrifuge separation quality?
Higher temperature reduces fluid viscosity and improves separation efficiency. Most industrial oils separate best at 60–90°C. Operating below the recommended temperature significantly reduces separation quality and throughput. Always verify the centrifuge feed temperature matches application requirements.
Can the gravity disc cause bad separation in a disc centrifuge?
Yes — the gravity disc is one of the most common causes of poor separation. If undersized, back pressure is too low and the liquid interface floods the light phase outlet with heavy phase. If oversized, back pressure is too high and light phase spills into the heavy phase outlet. Select the gravity disc based on density difference between the phases.
How does excessive feed flow rate affect centrifuge separation?
When feed flow rate exceeds the centrifuge's rated capacity for a given fluid, residence time inside the disc stack drops below the minimum needed. Droplets and particles that would normally settle are carried through with the product. Reducing flow to within the rated capacity typically restores separation quality immediately.
What is feed emulsification and why does it cause bad centrifuge separation?
Emulsification occurs when surfactants, detergents, or bio-emulsifiers stabilize the oil-water mixture so centrifugal force alone cannot separate it. The emulsifier source must be identified and eliminated, or a compatible demulsifier chemical added at the correct dosage upstream of the centrifuge.
