Dolphin Centrifuge supplies Alfa Laval MAB series solid-retaining disc-stack centrifuges (models MAB 204–209) for three-phase separation of diesel, lube oil, and hydraulic oil. Rated capacities range from 15 GPM to 78 GPM on diesel fuel, with motor sizes from 4 HP to 15 HP.
Overview
Alfa Laval MAB series centrifuges are disc-stack-type centrifuges with a solid bowl. A solid-bowl centrifuge implies that the separated solids must be manually removed periodically.
These are very simple centrifuges, with the main disadvantage of MAB-type centrifuges being the manual cleaning operation that requires the centrifuge to be stopped.
The Alfa Laval MAB Series Centrifuges are solid-retaining (also known as solid bowl or manual-clean) disc centrifuges ideal for the continuous, three-phase separation of fuels, such as diesel, biodiesel, turbine lube oil, and hydraulic oil.
Applications
The Alfa Laval MAB centrifuge is a purifier version of a disc-stack centrifuge. It is specifically designed to purify water from mineral oils and fuels such as diesel fuel, turbine lube oil, hydraulic oil, engine oil, etc.
Operation

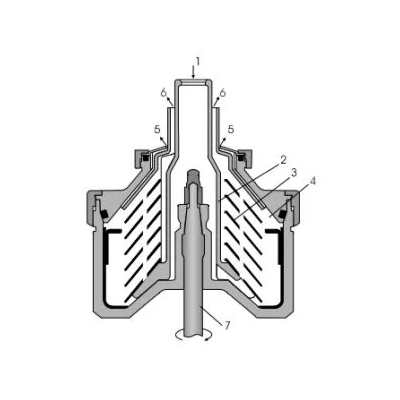

The process fluid is fed to the rotating centrifuge bowl from the top (1) and is sped up in the distributor (2). It then enters the disc stack (3), and it is between the discs that the separation occurs.
The high centrifugal force pushes the water and heavy solids to the bowl wall. The solids accumulate here, and the water fluid travels over the top disc (4) and exits the bowl through the open outlet (5). The oil (light phase) is moved towards the bowl center and exits the bowl through the open outlet (6).
The centrifuge needs to be periodically stopped for manual removal of separated solids. The rotating bowl assembly is mounted on a vertical bowl-spindle (7). A horizontally mounted motor rotates the spindle via a worm gear.

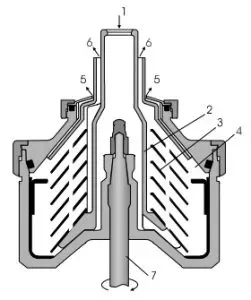

Alfa Laval Centrifuge Bowl Cross Section

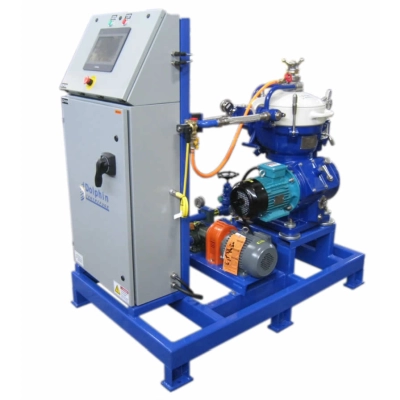

Alfa Laval MAB 204 Centrifuge
Specifications
| Model Type | Alfa Laval MAB 204S-24-60 |
| Rated Capacity | 15 GPM on Diesel Fuel 13 GPM on Turbine Lube Oil 8 GPM on Hydraulic Oil |
| Sludge Space | 0.40 Gallons |
| Motor HP | 4 HP |
| Voltages | 230 / 460 V |

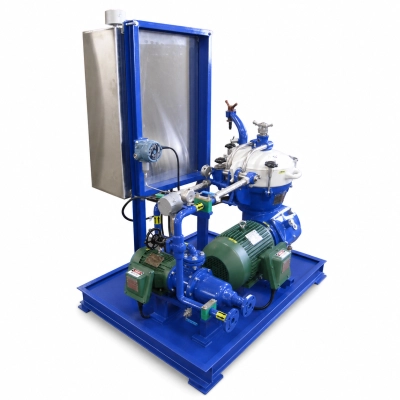

Alfa Laval MAB 205 Centrifuge
Specifications
| Model Type | Alfa Laval MAB 205S-24-60 |
| Rated Capacity | 25 GPM on Diesel Fuel 20 GPM on Turbine Lube Oil 13 GPM on Hydraulic Oil |
| Sludge Space | 0.48 Gallons |
| Motor HP | 5 HP |
| Voltages | 230 / 460 V |
Alfa Laval MAB 206 Centrifuge

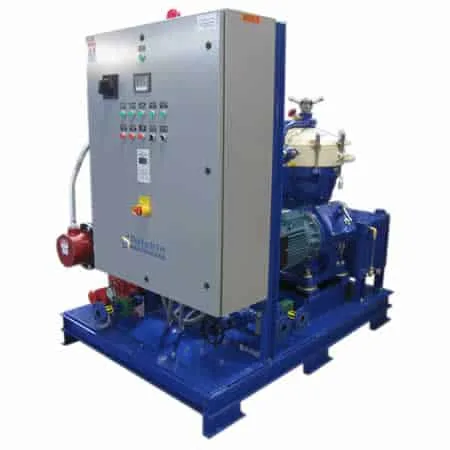

Alfa Laval MAB 206S Oil Separator

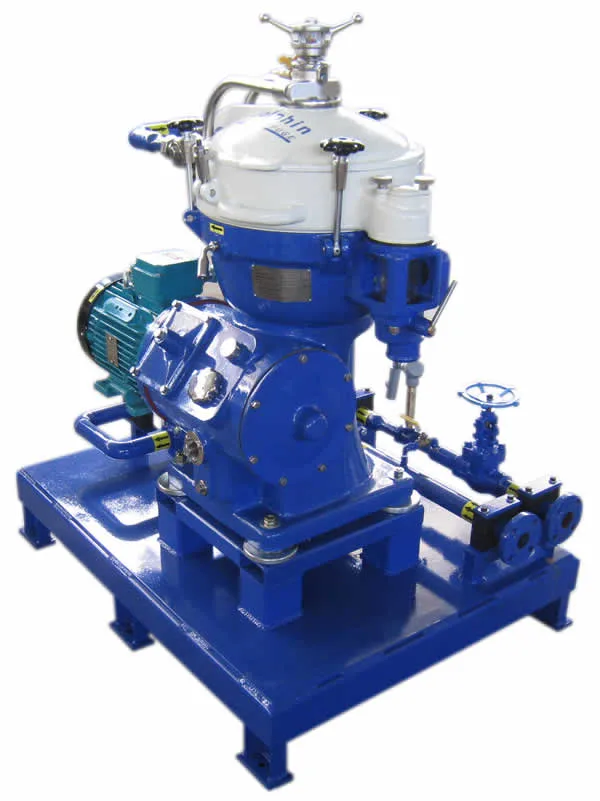

Alfa Laval MAB-206 Disc Stack Centrifuge Explosion Proof

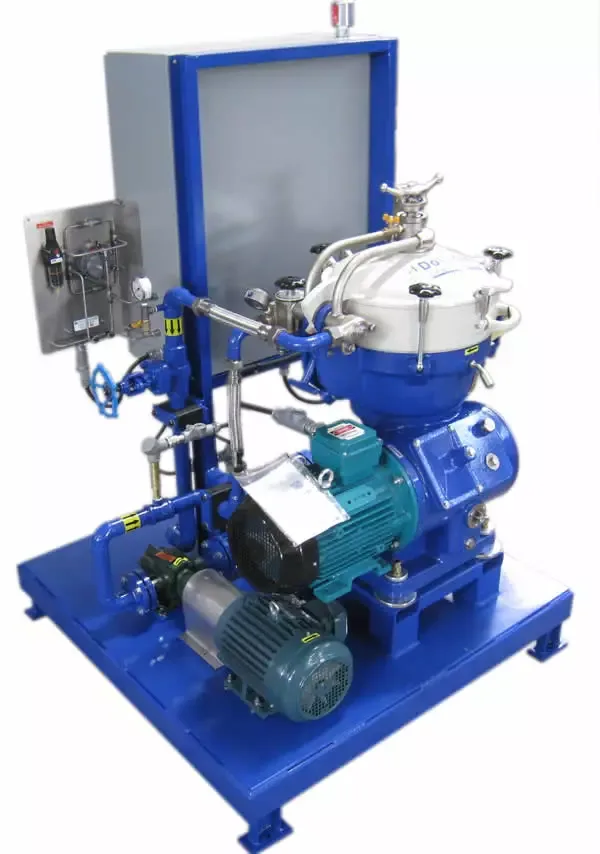

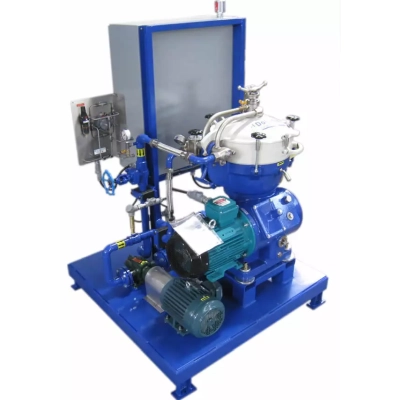

Alfa Laval MAB-206 Diesel Centrifuge Skid

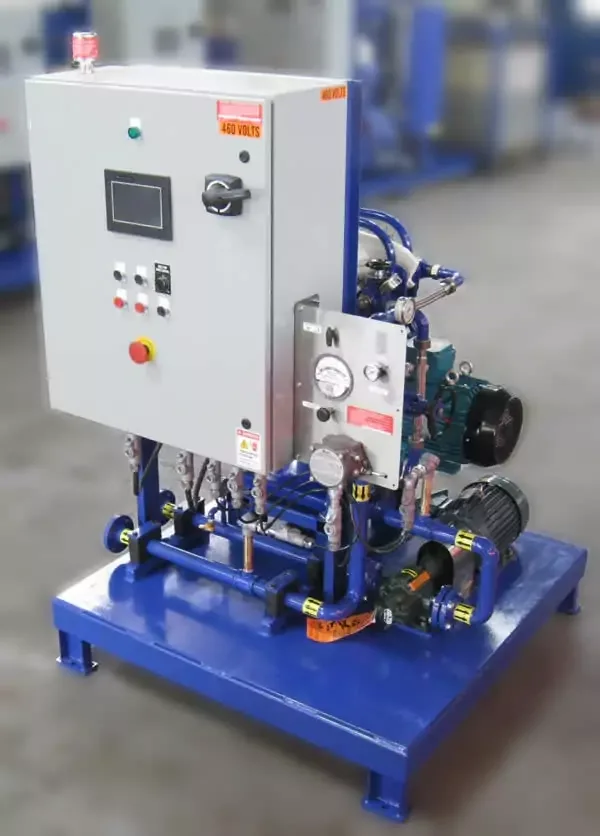

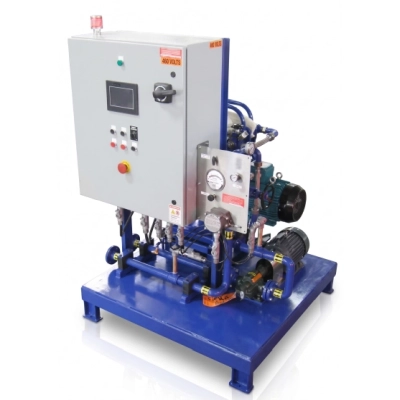

Alfa Laval MAB-206 Disc Stack Centrifuge - Class 1 Division 2 for Hazardous Areas

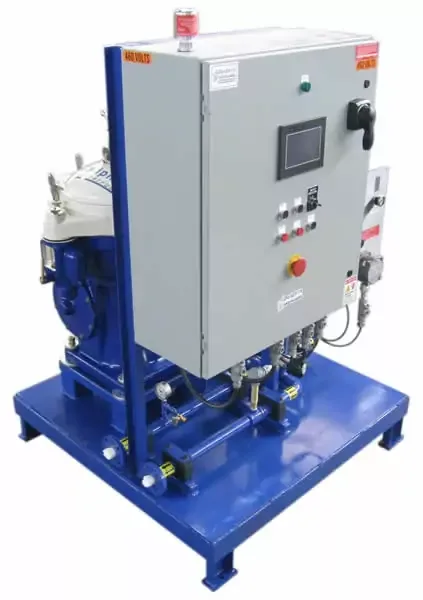

Alfa Laval MAB-206 Class 1 Div 2 Centrifuge

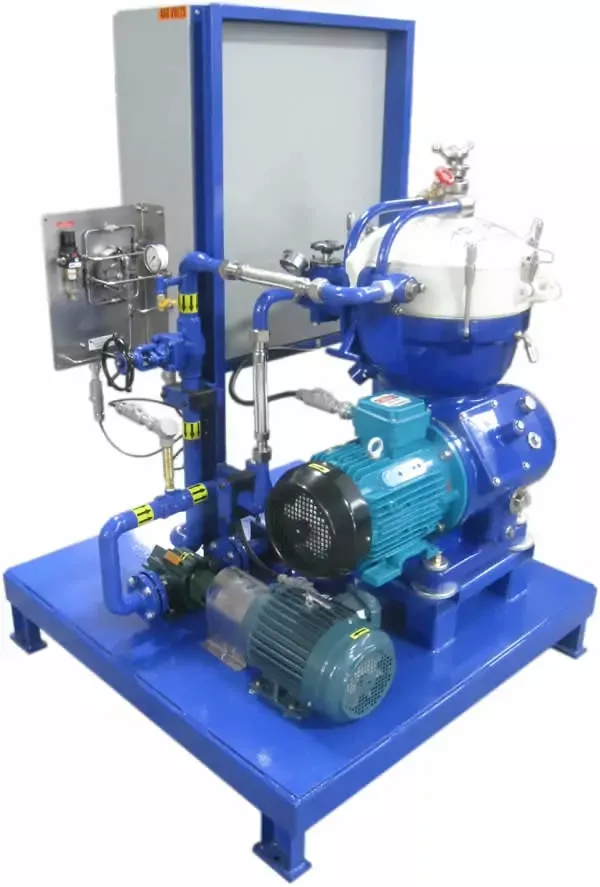

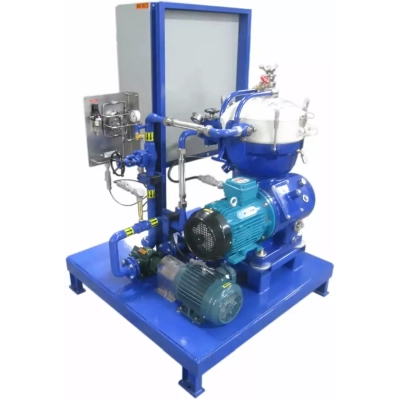

Alfa Laval Disc Stack Centrifuge for Diesel — Explosion Proof
Specifications
| Model Type | Alfa Laval MAB 206S-24-60 |
| Rated Capacity | 36 GPM on Diesel Fuel 28 GPM on Turbine Lube Oil 19 GPM on Hydraulic Oil |
| Sludge Space | 0.88 Gallons |
| Motor HP | 7.5 HP |
| Voltages | 230 / 460 V |

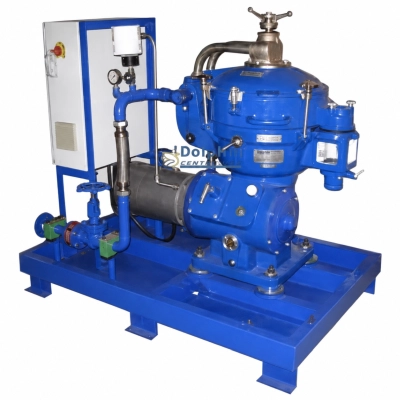

Alfa Laval MAB 207 Centrifuge
50 GPM Biodiesel Separation
Specifications
| Model Type | Alfa Laval MAB 207S-24-60 |
| Rated Capacity | 48 GPM on Diesel Fuel 40 GPM on Turbine Lube Oil 32 GPM on Biodiesel Glycerin Separation 25 GPM on Hydraulic Oil |
| Sludge Space | 1.10 Gallons |
| Motor HP | 10 HP |
| Voltages | 230 / 460 V |

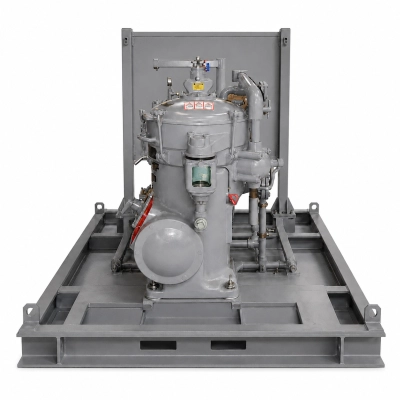

Alfa Laval MAB 209 Centrifuge

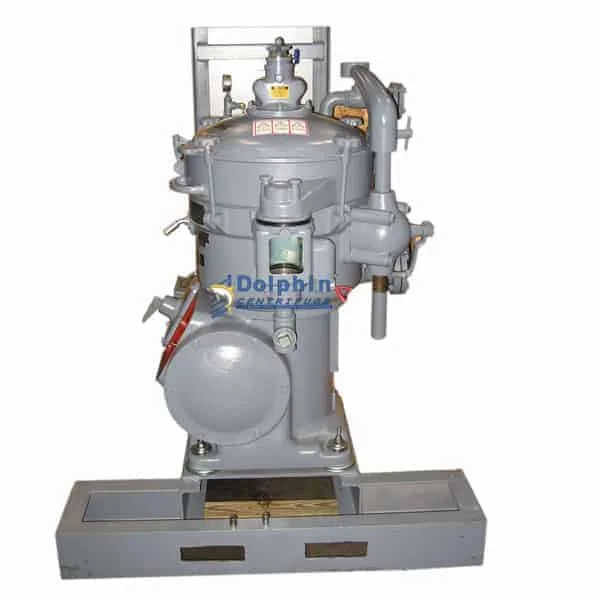

Alfa Laval MAB 209 Biodiesel Glycerol Centrifuge
Specifications
| Model Type | Alfa Laval MAB 209S-24-60 |
| Rated Capacity | 78 GPM on Diesel Fuel 65 GPM on Turbine Lube Oil 52 GPM on Biodiesel Glycerin Separation 40 GPM on Hydraulic Oil |
| Sludge Space | 2.00 Gallons |
| Motor HP | 15 HP |
| Voltages | 230 / 460 V |
Alfa Laval MAB Series — Model Comparison
The table below provides a side-by-side comparison of all five Alfa Laval MAB series centrifuge models, showing rated capacities across different fluid types and motor horsepower requirements.
| Model | Diesel (GPM) | Lube Oil (GPM) | Hydraulic Oil (GPM) | Motor (HP) | Sludge (Gal) |
|---|---|---|---|---|---|
| MAB 204S | 15 | 13 | 8 | 4 | 0.40 |
| MAB 205S | 25 | 20 | 13 | 5 | 0.48 |
| MAB 206S | 36 | 28 | 19 | 7.5 | 0.88 |
| MAB 207S | 48 | 40 | 25 | 10 | 1.10 |
| MAB 209S | 78 | 65 | 40 | 15 | 2.00 |
Need Alfa Laval MAB Centrifuge Parts or Service?
Dolphin Centrifuge stocks parts for all MAB models (103–209) and offers complete remanufacturing. Rebuilt MAB units tested and warranted. Same-day parts quotes.
Get a Quote →Frequently Asked Questions
What is the difference between the Alfa Laval MAB and MOPX centrifuge series?
The Alfa Laval MAB series are solid-retaining (manual-clean) disc-stack centrifuges, meaning accumulated solids must be manually removed by stopping the centrifuge. The MOPX series are self-cleaning centrifuges that automatically eject separated solids during operation without stopping. MAB centrifuges are simpler and more economical for applications with lower solids loading.
What fluids can an Alfa Laval MAB centrifuge process?
Alfa Laval MAB centrifuges are designed for three-phase separation of mineral oils and fuels including diesel fuel, biodiesel, turbine lube oil, hydraulic oil, and engine oil. They purify these fluids by removing water and solid contaminants simultaneously.
How often does an Alfa Laval MAB centrifuge need to be cleaned?
Cleaning frequency depends on the solids loading of the process fluid. For relatively clean fluids like turbine lube oil, cleaning intervals may be several days. For dirtier fluids with higher particulate content, the bowl may need manual cleaning every few hours. The sludge space capacity of each model — ranging from 0.40 gallons on the MAB 204 to 2.00 gallons on the MAB 209 — also affects cleaning intervals.
What is the Dolphin Centrifuge equivalent of the Alfa Laval MAB centrifuge?
The Dolphin DMB series (batch disc-stack centrifuge systems) are the functional equivalents of the Alfa Laval MAB series. The DMB-004 corresponds to the MAB 103/104 size range, the DMB-007 to the MAB 205 range, and the DMB-013 to the MAB 206/207 range. DMB systems include a complete module with heaters, feed pump, and controls.
Does Dolphin Centrifuge supply Alfa Laval MAB centrifuge parts?
Yes. Dolphin Centrifuge stocks and supplies Alfa Laval MAB centrifuge parts including bowl discs, gaskets, bearings, seals, gravity discs, and paring tubes for all MAB models (MAB 103, 104, 204, 205, 206, 207, 209). Contact Dolphin Centrifuge at (248) 522-2573 or visit alfa-laval-centrifuge-parts for availability.
