Dolphin Centrifuge supplies parts, repairs, and remanufactured Alfa Laval WHPX 510 self-cleaning disc stack centrifuges rated at 42 GPM on diesel (13 cSt) with a 10 HP motor at 5,180 RPM. Available as the complete DMPX-042 system module for waste oil, diesel, crude oil, and biodiesel separation.

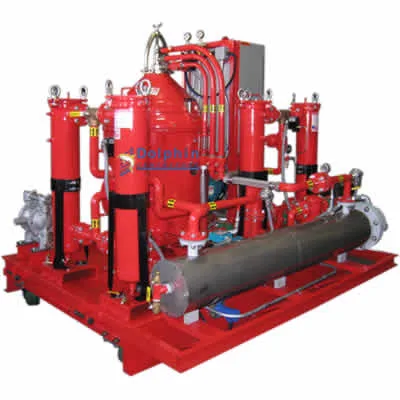

WHPX 510 Self-Cleaning Centrifuge
The Alfa Laval WHPX 510 is a self-cleaning disc stack centrifuge engineered for the continuous three-phase separation of fuels and oils. It simultaneously separates water, solids, and clean oil in a single pass, eliminating the need for multi-stage processing.
The WHPX 510 is one of the most versatile centrifuges in the Alfa Laval product line, handling everything from clean diesel fuel polishing to heavy waste oil reclamation. Its 10 HP motor drives the bowl at 5,180 RPM, delivering the centrifugal force needed for efficient separation across a wide range of viscosities.
Available in explosion-proof configurations for hazardous area installations, the WHPX 510 is a workhorse centrifuge found in re-refineries, fuel terminals, marine vessels, and industrial waste oil processing facilities worldwide.
Dolphin Centrifuge also provides complete used oil centrifuge systems and WVO centrifuge separators built around the WHPX 510 platform for waste vegetable oil and cooking oil purification.

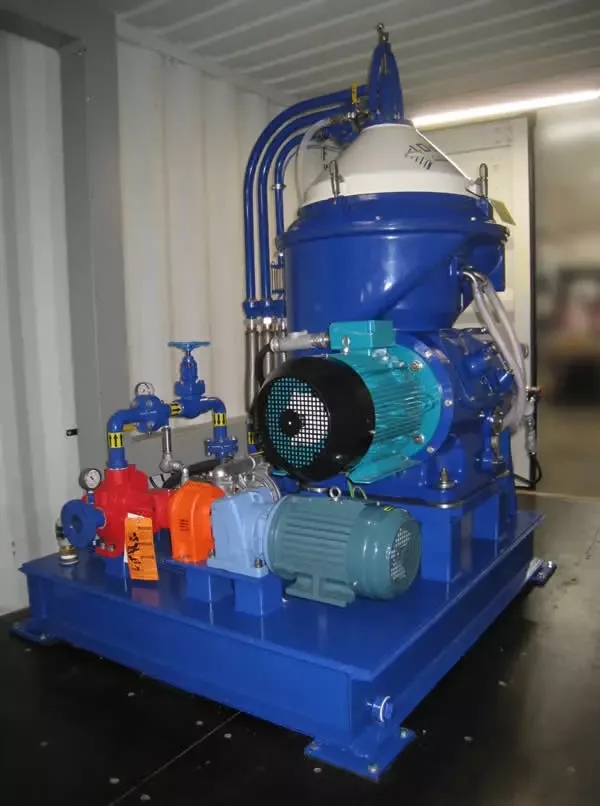

Explosion Proof WHPX-510 Disc Stack Centrifuge for Crude Oil
Need parts, repairs, or a remanufactured WHPX 510?
Dolphin Centrifuge supplies complete modules with pre-heaters, starters, and PLC control panels — available as the DMPX-042 turnkey system or as individual centrifuge rebuild services for waste oil, diesel, crude oil, and biodiesel applications.
Request a Quote →WHPX 510 Specifications
| Model Type | Alfa Laval WHPX 510 TGD 24-60 |
| Rated Capacity | 42 GPM on 13 cSt Diesel Fuel |
| Sludge Space | 1.62 Gallons |
| Motor HP | 10 HP |
| Voltages | 230 / 460 V |
If you have simple, routine questions: We have condensed our 40+ years of disc-stack centrifuge experience into 101 Frequently Asked Questions about Disc Stack Centrifuges.
Also Available: MOPX 310 Total-Discharge
The Alfa Laval MOPX 310 is a self-cleaning disc-stack centrifuge in the same size class, designed for three-phase separation of industrial oil, lube oil, WVO, black diesel, and other mineral oils. With a 10 HP motor at 5,180 RPM, it processes 25 GPM of used oil at 180°F.
| Model Type | Alfa Laval MOPX 310 TGT 20-60 |
| Rated Capacity | 42 GPM on 3 cSt Diesel Fuel |
| Sludge Space | 1.55 Gallons |
| Motor HP | 10 HP |
| Voltages | 230 / 460 V |
Applications
- • WVO and used cooking oil purification
- • Fuel oil purification
- • Biodiesel separation
Industrial Scale WVO Centrifuge
Crude Oil Tank Bottom Dewatering Centrifuge
Used Motor Oil Centrifuge
WVO Purifier
Fuel Oil Centrifuge
Looking for a complete turnkey system? See our disc stack centrifuge systems →
What is the Dolphin equivalent of the Alfa Laval WHPX 510? ▼

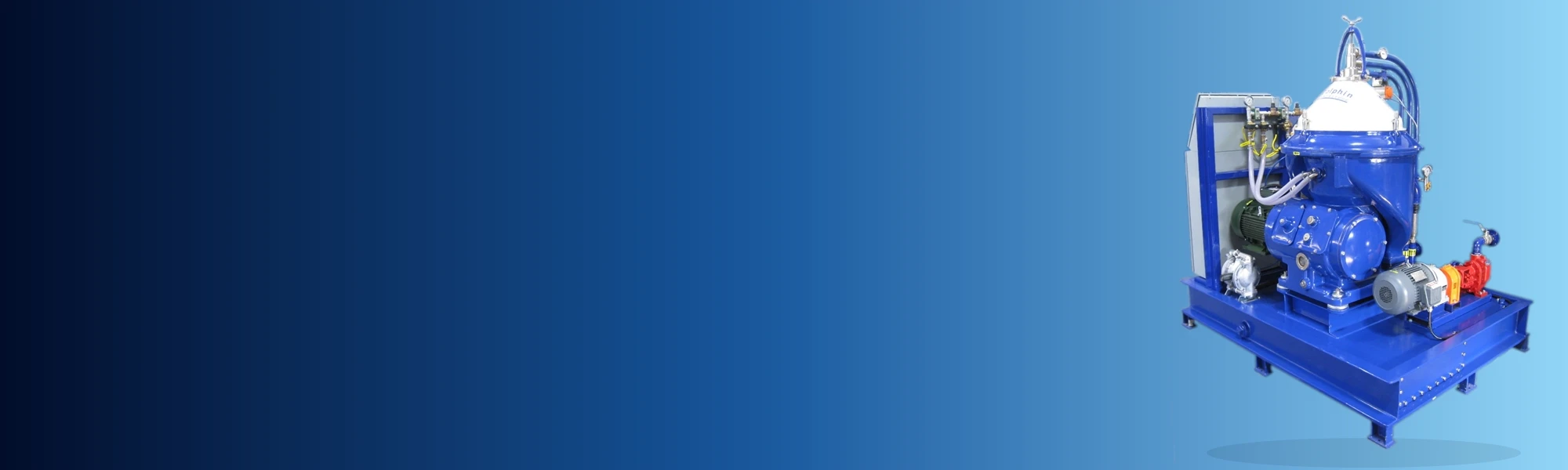

The Dolphin DMPX-042 centrifuge system is built around the Alfa Laval WHPX 510 (or equivalent MOPX 209/310 / MAPX 210) centrifuge bowl. The DMPX-042 is a complete system module rated at 32–47 GPM on diesel, with full PLC controls, electric heaters, and piping.
What flow rate does the Alfa Laval WHPX 510 handle? ▼
The Alfa Laval WHPX 510 handles approximately 42 GPM on diesel fuel (13 cSt at operating temperature) and approximately 24 GPM on lube oil at 30 cSt. For the equivalent Dolphin DMPX-042 system, rated capacity ranges from 32 to 47 GPM on diesel depending on configuration.
Is the WHPX 510 self-cleaning or manual clean? ▼
The Alfa Laval WHPX 510 is a self-cleaning (automatic partial-discharge) disc stack centrifuge. The bowl automatically ejects accumulated sludge through timed discharge cycles without stopping the centrifuge. This allows continuous uninterrupted operation ideal for high-volume waste oil and diesel purification applications.
What industries use the WHPX 510 / DMPX-042 centrifuge? ▼
The WHPX 510 / DMPX-042 is widely used in: waste oil recovery and re-refining, diesel fuel polishing for large fleet operations, crude oil dehydration in oilfields, biodiesel glycerin separation, marine fuel purification, and industrial lube oil reclamation. Its 42 GPM capacity on diesel makes it one of the most popular mid-range industrial centrifuges.
Can Dolphin Centrifuge supply parts or rebuild the WHPX 510? ▼
Yes. Dolphin Centrifuge supplies genuine and compatible replacement parts for the WHPX 510, including disc stacks, seals, bearings, and discharge valve components. Complete bowl rebuilds and remanufactured WHPX 510 centrifuges are available. Each rebuilt unit is factory tested before shipment.
Parts, Repairs & Remanufactured WHPX 510
Contact Dolphin Centrifuge for pricing, availability, and application support. Sample testing available for qualifying applications.
