The Alfa Laval MOPX 207 is a self-cleaning disc-stack centrifuge processing up to 28 GPM of diesel fuel at 6,325 RPM. Dolphin Centrifuge supplies it as the DMPX-028 complete module for fuel oil, lube oil, and waste oil purification.

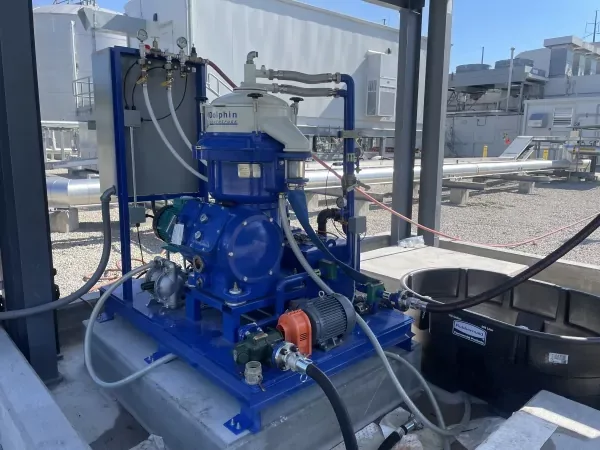

Alfa Laval MOPX 207 — Operation
The Alfa Laval MOPX 207 Centrifuge is a self-cleaning, disc-stack centrifuge ideal for the continuous, three-phase separation of fuels and mineral oils.
With a 7.5 HP Motor, the MOPX 207 centrifuge has a bowl RPM of 6,325 and can process 32 GPM of Distillate.
The Alfa Laval MOPX-207 is a versatile, 'self-cleaning' centrifuge that is small enough to be manually serviced without the need for lifting devices (cranes, hoists, etc.)
However, it can process over 30 Gallons per Minute of condensate.
Key Operational Highlights
- ✓ Continuous three-phase separation (oil / water / solids)
- ✓ Self-cleaning bowl — automatic sludge ejection without stopping
- ✓ Small enough for manual service — no lifting equipment needed
- ✓ 316L duplex stainless steel bowl construction

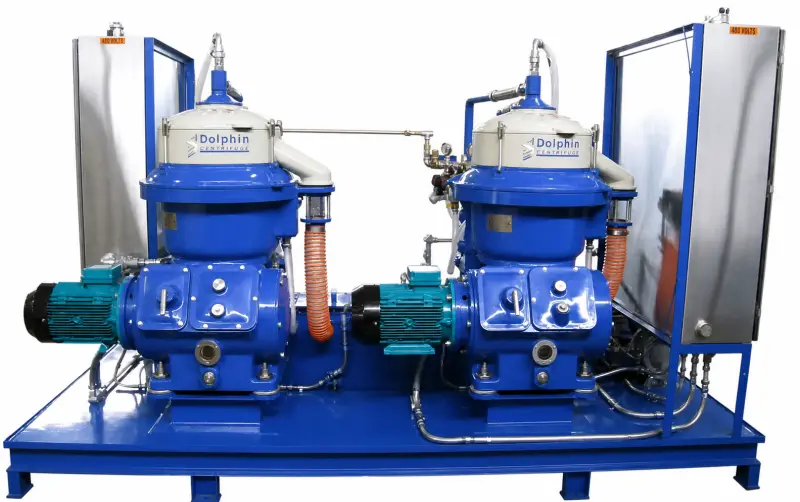

- ✓ Available in standard and explosion-proof (Class 1 Div 2) configurations
- ✓ Processes diesel, lube oil, waste oil, biodiesel, and more
Alfa Laval MOPX-207 — Applications
The MOPX-207 finds a variety of applications in fuel and lubrication purification applications. Some of the popular applications are:
- ➜ Diesel Fuel

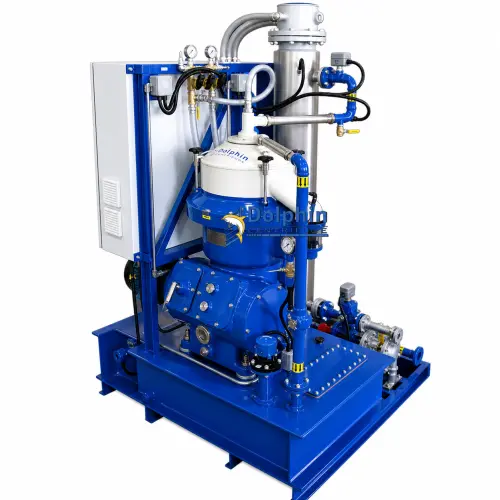

- ➜ Waste Oil
- ➜ Black Diesel
- ➜ WVO or Yellow Grease
- ➜ Biodiesel Glycerol
- ➜ Heavy Fuel Oil
- ➜ Machining Coolant
- ➜ Quenching Oil
- ➜ Light Crude Oil
Alfa Laval MOPX 207 — Specifications
| Parameter | Value |
|---|---|
| Centrifuge Model | Alfa Laval MOPX 207 TGT |
| Capacity — Diesel | 28 GPM on 13 cSt Diesel Fuel |
| Capacity — Turbine Lube Oil | 22 GPM |
| Capacity — Hydraulic Oil | 20 GPM |
| Sludge Space | 1.00 Gallons |
| Bowl Speed | 6,325 RPM |
| Net Weight | 1,800 Lbs. |
| Dimensions | 30" x 38" x 43" (Bare Centrifuge) |
| Motor Power | 7.5 HP |
| Voltages | 230 / 460 V; 3-Phase |
Material of Construction
The Alfa Laval MOPX 207 is designed for mineral oil and fuel separation applications. Therefore, the material used in its construction is well suited for such uses. The following table lists the various components of the centrifuge and the material it is made of.
| Component | Material |
|---|---|
| Bowl Body & Bowl Hood | 316L Duplex Stainless Steel |
| Disc Stack | 316L Duplex Stainless Steel |
| Distributor or Disc Carrier | Marine Grade Bronze or 316 Stainless Steel (Special Order) |
| Top Disc | Marine Grade Bronze or 316 Stainless Steel (Special Order) |
| Top Covers (Collecting) | Silium (Aluminum Alloy) |
| Frame | Nodular Cast Iron |
If you have simple, routine questions: We have condensed our 40+ years of disc-stack centrifuge experience into 101 Frequently Asked Questions about Disc Stack Centrifuges!

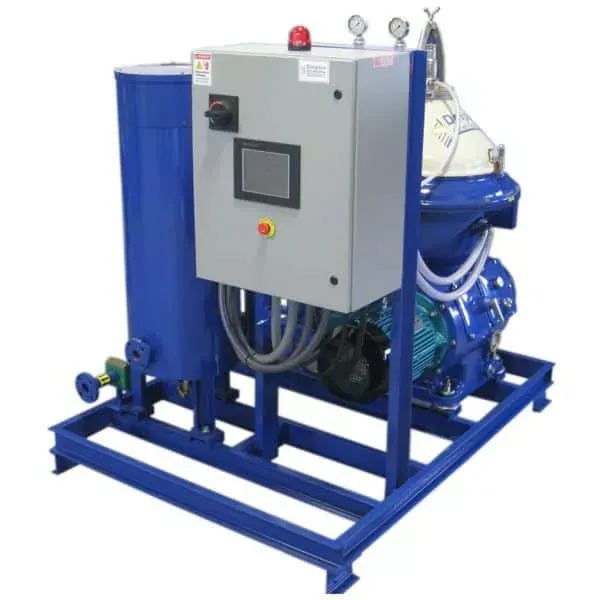

Alfa Laval WHPX 407 — Partial-Discharge Disc-Stack Centrifuge
The Alfa Laval WHPX 407 Centrifuge is a self-cleaning disc-stack centrifuge designed for the three-phase separation of fuel oils, such as light fuel oil (LFO).
With a 10 HP Motor, the WHPX 407 centrifuge has a bowl RPM of 7,125 and can process 25 GPM of ISO 180 cSt Light Fuel Oil.
Also, the WHPX-407 is a partial-discharge centrifuge. This means that this centrifuge is capable of discharging only the accumulated sludge and minimizing fluid loss.
Alfa Laval WHPX-407 Applications
Similar to the Alfa Laval MOPX-207, the WHPX-407 finds many applications in all kinds of 3-phase separation duties. Some of the popular applications are:
Alfa Laval WHPX-407 Specifications
| Parameter | Value |
|---|---|
| Model Type | Alfa Laval WHPX 407 TGD 24-60 |
| Rated Capacity | 25 GPM on 180 cSt Light Fuel Oil |
| Sludge Space | 1.30 Gallons |
| Motor HP | 10 HP |
| Voltages | 230 / 460 V |

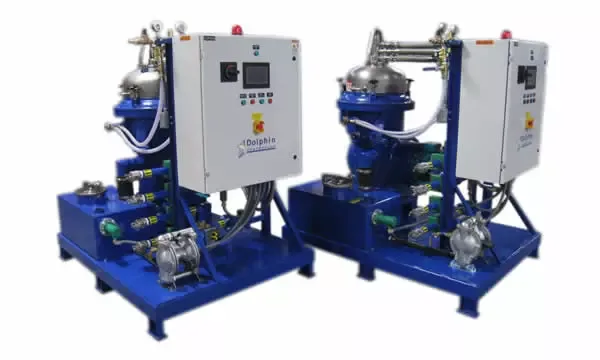

Alfa Laval WSPX 207 TGP — Partial-Discharge Disc-Stack Centrifuge

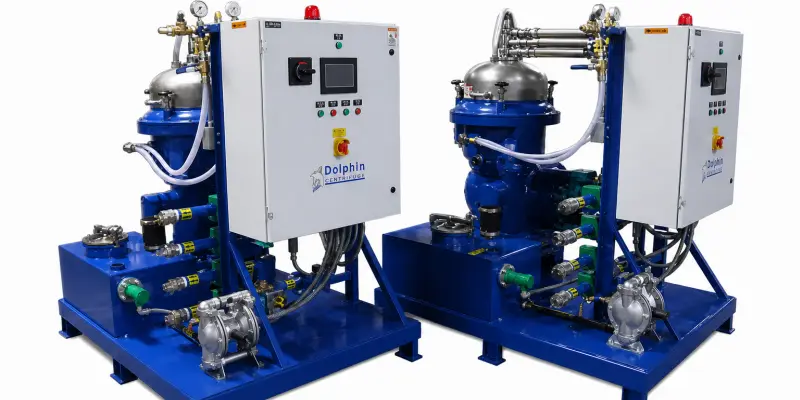

The Alfa Laval WSPX 207 Centrifuge is a self-cleaning disc-stack centrifuge designed for the three-phase concentration of water-based liquids such as machine coolants and washer liquids.
With a 7.5 HP Motor, the WSPX 207 centrifuge has a bowl RPM of 6,400 and can process 20 GPM of water-based machining coolant.
Alfa Laval WSPX-207 Applications
The Alfa Laval WSPX-207 is very similar to the WHPX-407, except that this centrifuge is a concentrator. A concentrator centrifuge is designed to separate a small oil volume from a large volume of water or water-based fluid. Some of the popular applications are:
- ➜ Machining Coolant
- ➜ Parts Washer Fluid
- ➜ Water-based Drawing Lubricant
Alfa Laval WSPX-207 Specifications
| Parameter | Value |
|---|---|
| Model Type | Alfa Laval WSPX 207 TGP 70 |
| Rated Capacity | 20 GPM on Synthetic Machine Coolant |
| Sludge Space | 1.32 Gallons |
| Motor HP | 7.5 HP |
| Voltages | 230 / 460 V |

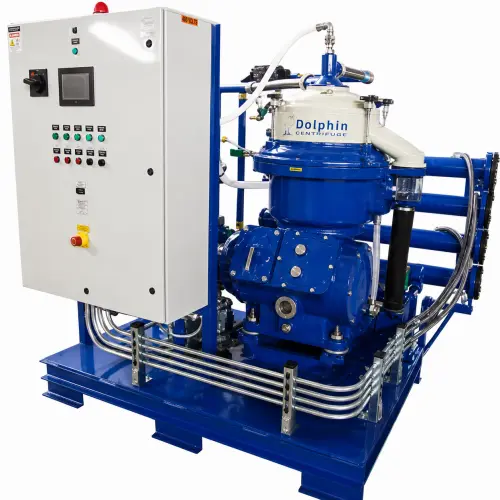

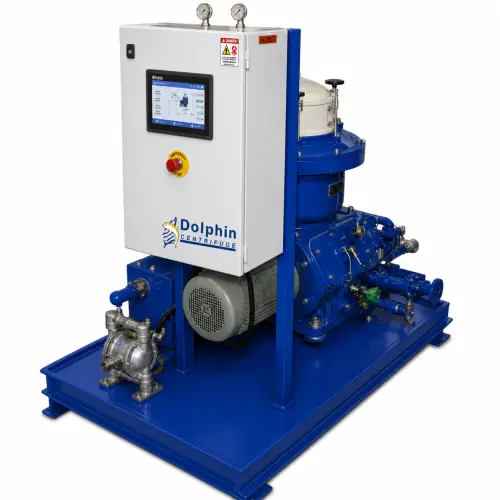

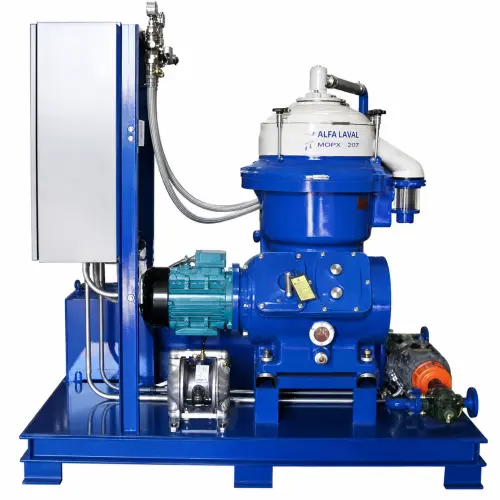

Alfa Laval MOPX 207 Centrifuge Modules
Ready to Get Started?
Dolphin Centrifuge supplies complete MOPX-207, WHPX-407, and WSPX-207 centrifuge systems for fuel oil purification, lube oil cleaning, and industrial oil separation. Get a quote or schedule a consultation today.
Need an Alfa Laval MOPX 207 or Spare Parts?
Dolphin Centrifuge supplies remanufactured MOPX 207 centrifuges and the complete DMPX-028 system module — with heaters, pump, PLC, and full warranty. Parts for all MOPX models in stock.
Get a Quote →Frequently Asked Questions — Alfa Laval MOPX 207
What is the capacity of the Alfa Laval MOPX 207 centrifuge?
The Alfa Laval MOPX 207 can process 28 GPM of 13 cSt diesel fuel, 22 GPM of turbine lube oil, and 20 GPM of hydraulic oil. When processing distillate, the capacity increases to 32 GPM. It can also process over 30 Gallons per Minute of condensate, making it a highly versatile centrifuge for fuel and oil purification applications.
What is the difference between the MOPX 207, WHPX 407, and WSPX 207?
The MOPX 207 is a full-discharge purifier designed for fuel and mineral oil separation with a 7.5 HP motor and 6,325 RPM bowl speed. The WHPX 407 is a partial-discharge centrifuge with a larger 10 HP motor and 7,125 RPM bowl speed, designed for fuel oils like light fuel oil (LFO) at 25 GPM. The WSPX 207 is a concentrator designed for water-based liquids such as machine coolants and washer fluids, with a 7.5 HP motor and 6,400 RPM bowl speed processing 20 GPM. The partial-discharge models (WHPX and WSPX) minimize fluid loss during sludge ejection.
What materials is the MOPX 207 bowl made from?
The MOPX 207 bowl body and bowl hood are constructed from 316L Duplex Stainless Steel, as is the disc stack. The distributor (disc carrier) and top disc are made from Marine Grade Bronze, with 316 Stainless Steel available as a special order option. The top covers (collecting covers) are made from Silium, an aluminum alloy. The frame is Nodular Cast Iron. These materials are specifically selected for mineral oil and fuel separation applications.

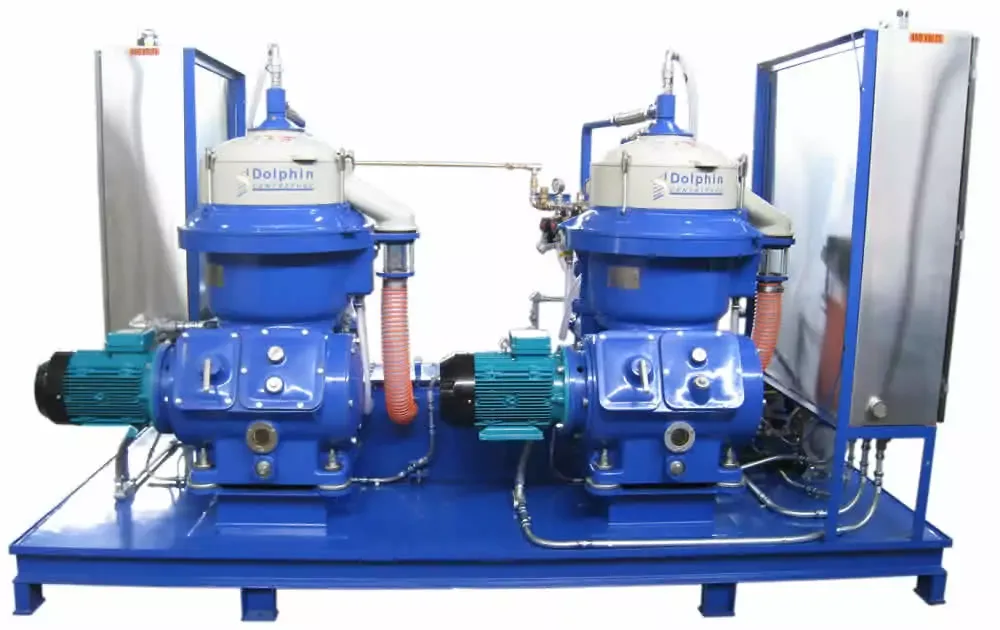

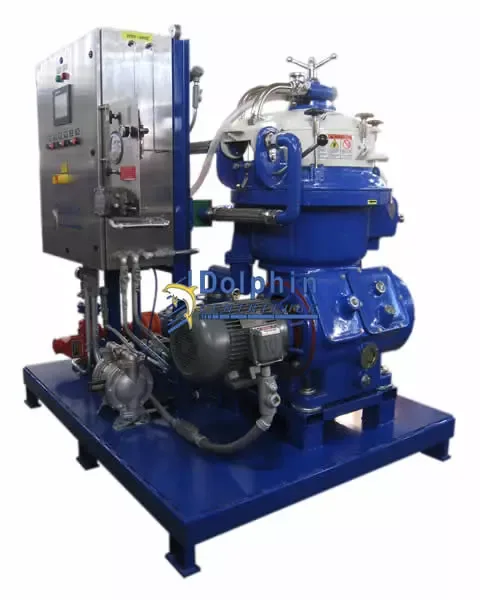

Is the Alfa Laval MOPX 207 available in an explosion-proof configuration?

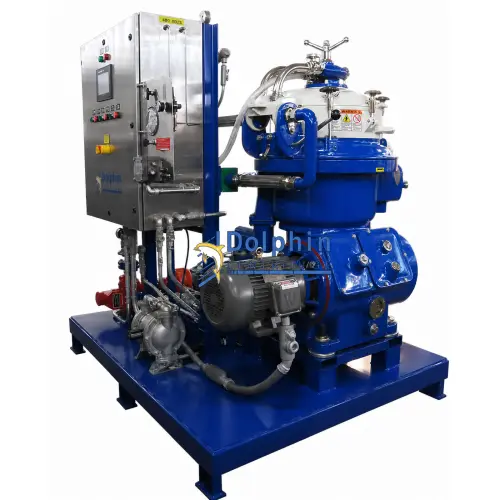

Yes, the Alfa Laval MOPX 207 is available in a Class 1 Division 2 explosion-proof configuration, making it suitable for hazardous environments where flammable fuels and solvents are processed. This explosion-proof variant, sometimes referred to as the MAPX-207, is commonly used in diesel fuel processing, biodiesel production, and other applications involving volatile hydrocarbons. Contact Dolphin Centrifuge for pricing and availability of explosion-proof MOPX 207 centrifuge systems.

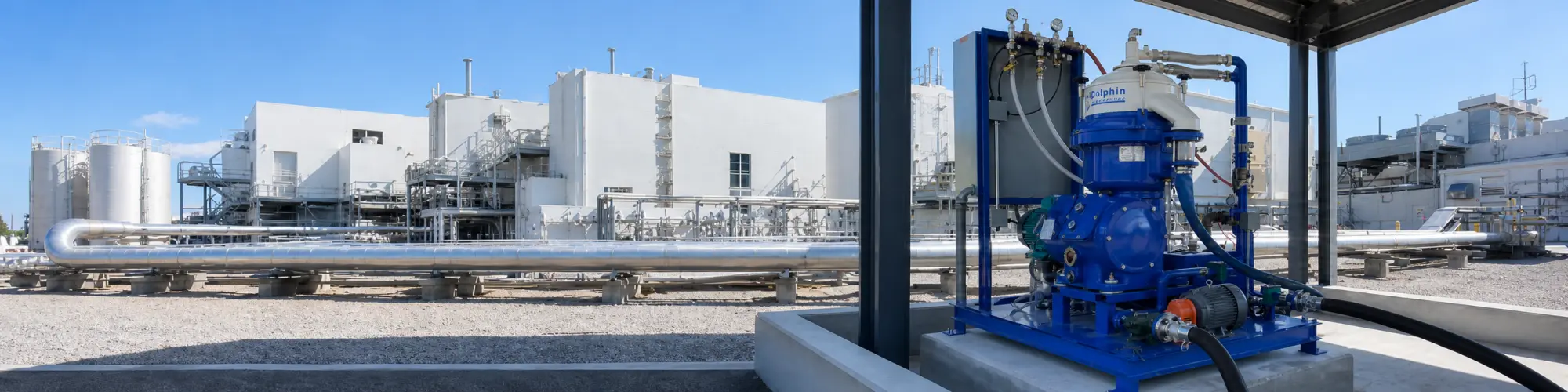

What is the Dolphin Centrifuge equivalent of the Alfa Laval MOPX 207?
The Dolphin DMPX-028 is the complete system module equivalent of the Alfa Laval MOPX 207 centrifuge bowl. The DMPX-028 adds a full system frame, PLC controls, electric heaters, feed pump, and piping to the MOPX 207 bowl to create a turnkey centrifuge module rated at 20–28 GPM on diesel depending on configuration. Contact Dolphin Centrifuge at (248) 522-2573 for pricing.
