Alfa Laval NX 418 B31-G Two-Phase Decanter Centrifuge
The Alfa Laval NX 418 Decanter Centrifuge is a horizontal de-sludging centrifuge built for the two-phase separation of wastewater, crude oil tank bottoms, municipal sludge-thickening, industrial sludge dewatering, paint sludge handling, etc.
With a 20 HP Motor, the NX 418 decanter has a bowl RPM of 4,000 and can process 110 GPM of water with light sludge.
Applications
The Alfa Laval NX-418 Decanter is used for the following applications.
- ✓ Hemp Solvent Extraction
- ✓ Ethanol Extraction Centrifuge
- ✓ Waste Oil De-sludging
- ✓ Crude Oil Tank Bottom Sludge
- ✓ Municipal Wastewater
- ✓ Pyrolysis Sludge Separation
- ✓ Liquid Humus Fertilizer
- ✓ Sludge Thickening & Dewatering
Cross Section Diagram
Specifications
The following are the technical specifications for the Alfa Laval NX 418 B31-G two-phase decanter centrifuge.
| Model Type | Alfa Laval NX 418 B31-G Decanter Centrifuge |
| Rated Capacity | 110 GPM on Water Sludge Thickening |
| Auger Differential Speed | 1 ~ 50 RPM |
| Drive Motor Power | 20 HP |
| GearBox Ratio | 1 : 159 (2.5 kN-M) |
| AE (Area Equivalent) | 1,565 |
| Bowl Speed | 4,000 RPM |
| G-Force | 3,150 RCF |
| Conveyor Protection | Carbide Tile or Tungsten Carbide Hard-Surfacing |
Alfa Laval UVNX 418 B-11 Three Phase Decanter Centrifuge (Tricanter)
The Alfa Laval UVNX 418 Decanter is a three-phase decanter centrifuge specially built for the three-phase separation of fish oil, olive oil, animal fat-rendering, etc.
With a 25 HP Motor, the UVNX 418 decanter centrifuge has a bowl RPM of 4,000 and can process 70 GPM of Fish Oil and Meal Separation.
Specifications
The following are the technical specifications for the Alfa Laval UVNX 418 B11-G three-phase decanter centrifuge (tricanter).
| Model Type | Alfa Laval UVNX 418 B11-G (Three-Phase Decanter) |
| Rated Capacity | 70 GPM on Fish Stickwater & Fishmeal Separation |
| Auger Differential Speed | 1 ~ 50 RPM |
| Drive Motor Power | 20 HP |
| GearBox Ratio | 1 : 159 (2.5 kN-M) |
| Bowl Speed | 4000 RPM (3,150 Gs RCF) |
| Conveyor Protection | Carbide Tile or Tungsten Carbide Hard-Surfacing |
Used Alfa Laval NX 418 Photo-Gallery

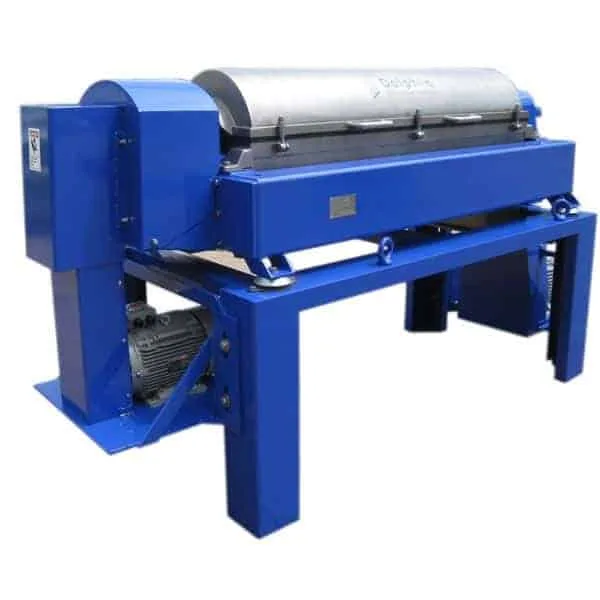

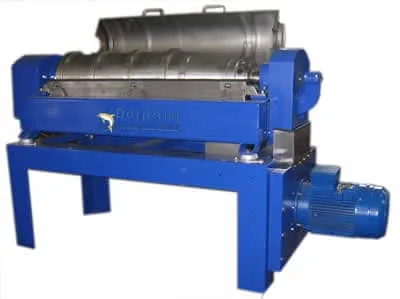

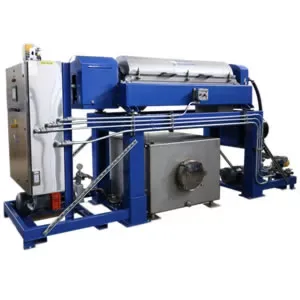

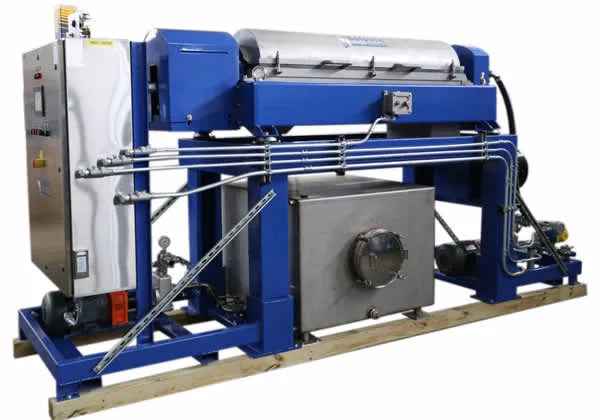

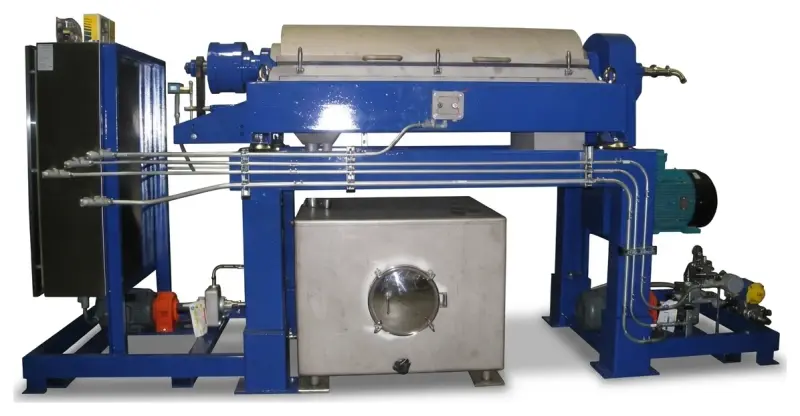

The following are some photographs of Alfa Laval NX-418 Decanters Reconditioned by Dolphin Centrifuge.
Get a Quote for the Alfa Laval NX-418 Decanter
Dolphin Centrifuge supplies reconditioned NX-418 and UVNX-418 decanter centrifuges with full warranty from Warren, Michigan.
