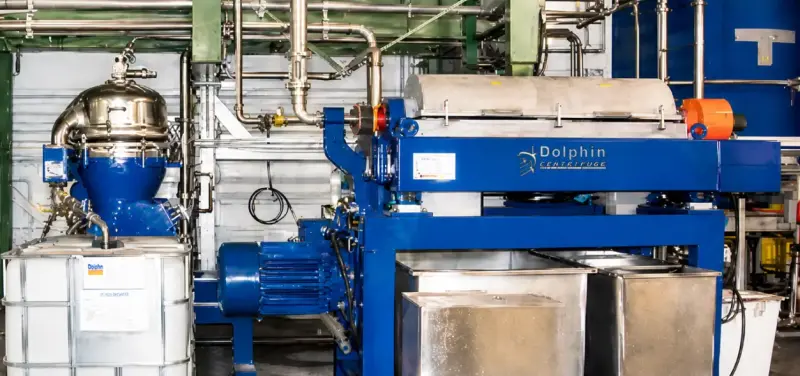

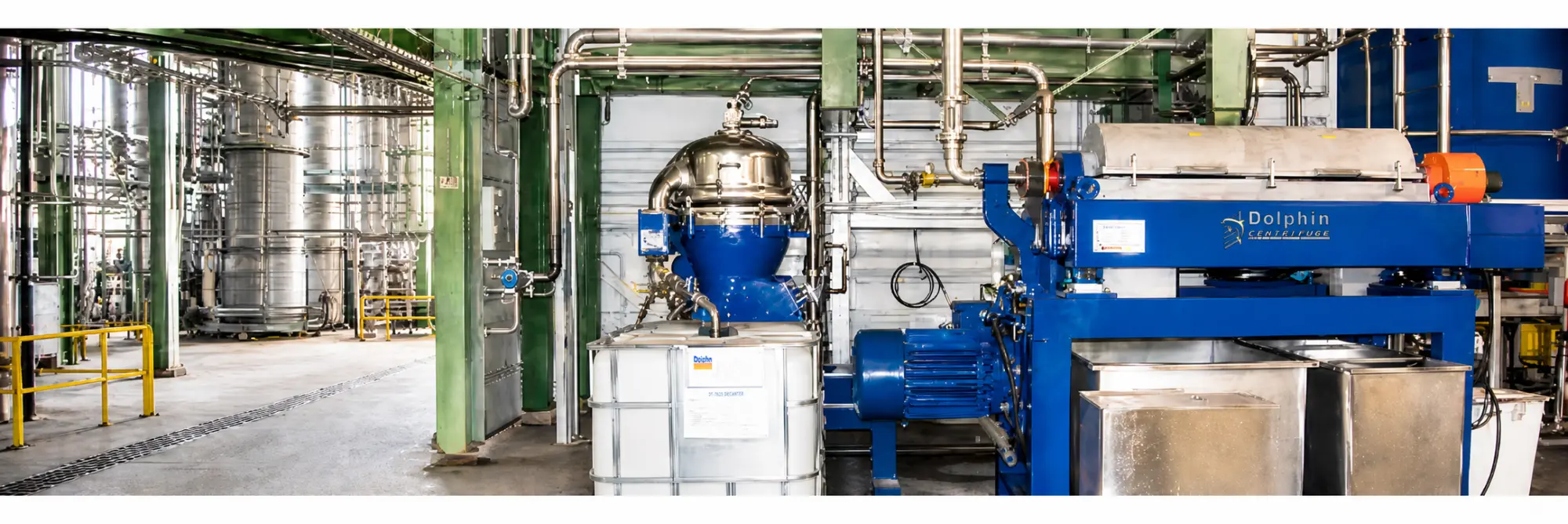

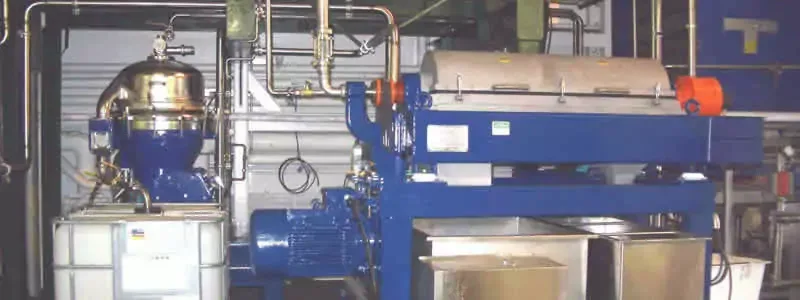

Alfa Laval Decanter and Disc Centrifuges at a Fish Meal Processing Plant

Applications

Fish Oil Processing Centrifuge

Industrial Fish processing requires separation of large volumes of fish oil from fish meal and stick water. Alfa Laval centrifuges are the best choice!

Trusted by the U.S. Military, O&G majors, Fortune 500 manufacturers, and international EPC contractors | 500+ systems delivered since 1982.

Every Unit Test-Run
Full Rebuild - Stainless Fasteners
12-Month Mechanical Warranty

By Owner and Chief Engineer, Dolphin Centrifuge

Fish Oil Processing Centrifuge

A fish oil processing centrifuge is an industrial centrifuge that separates fish oil and fish meal from the process water, also known as stick water. Industrial fish processing involves cooking and grinding leftover fish parts that are separated into fish oil, stick water, and protein or fish meal.

Every fish processing system on this page is built around a remanufactured Alfa Laval centrifuge, named openly: the NX 418, FPNX 309, and UVNX 314 decanters and tricanters for fish meal and stick water, and stainless steel disc stack separators such as the AFPX 213 for fish oil polishing. Dolphin Centrifuge is the independent specialist in Alfa Laval centrifuges, with remanufactured machines, turnkey systems, parts, and service built on 40+ years of Alfa Laval experience, and every system here is sized and engineered by Sanjay Prabhu, M.S.M.E. The skid, controls, and piping are Dolphin engineering; the centrifuge inside is Alfa Laval. Dolphin is an independent remanufacturer and is not affiliated with Alfa Laval.

Fish Oil Processing Centrifuge Video

Operation

Fish oil centrifuges operate by using a high centrifugal force to affect the separation of the three phases of processed fish residue. These centrifuges separate Fish Oil, Fish Meal, and stick water from inedible fish processing residue. The fish residue consists of non-saleable fish parts such as skin, guts, heads, bones, offal, and fins.

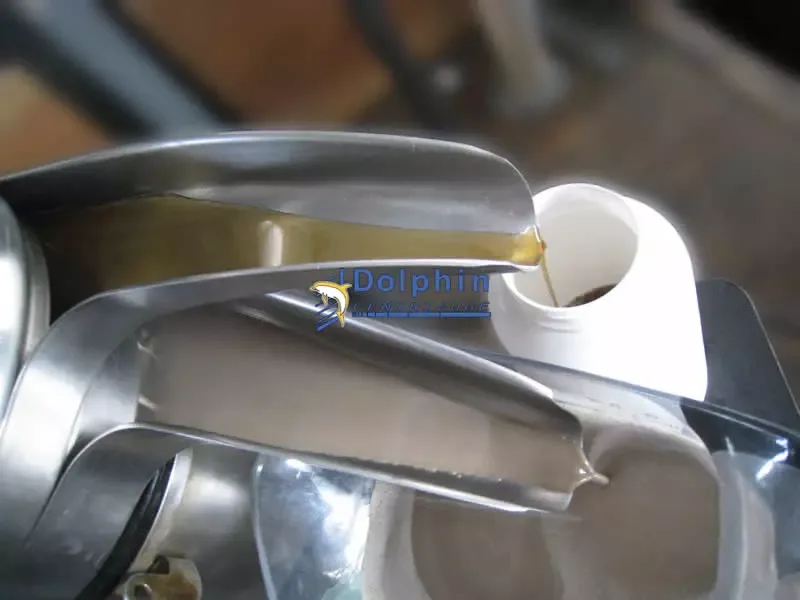

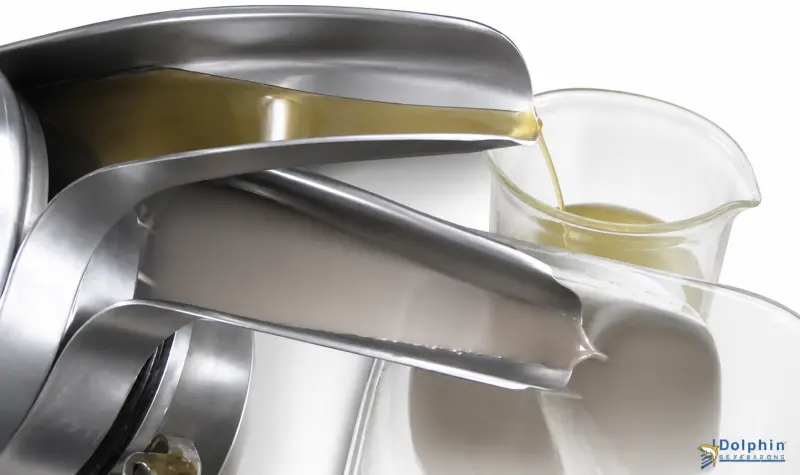

Fish oil and water separation testing on an Alfa Laval disc stack centrifuge at Dolphin Centrifuge
Fish Oil Water Separation - Alfa Laval Disc Stack Centrifuge

Methods of Centrifuging in Fish Processing

Pre-centrifuge Fish Processing Steps

The incoming fish leftovers and water are heated in a cooker. This process sometimes uses steam to break down the raw fish and release the oil.

The cooked fish biomass passes through a screening process to separate the bulk of solids from liquids. The solids separated at this phase are proteins. This solid phase is dried and is known as a fish meal. Fish meal is a valuable product for many commercial uses in aquaculture and agriculture.

The liquid phase from the abovementioned process consists of oil, water, and fine solids. There are two ways to separate this fluid's three phases (oil, water, and solids).

Using a Tricanter for Fish Oil Production

The first method uses a tricanter or a three-phase decanter centrifuge to separate the oil, water, and solids simultaneously. A tricanter is a three-phase horizontal centrifuge that separates bulk solids from water and oil. So, a tricanter processing this strained fluid separates the remaining fish meal from the stick water and fish oil.

However, there is an inherent limitation with using a tricanter due to the lower centrifugal force generated. A lower g-force may not be sufficient to efficiently separate the oil and water phases in the feed.

Using a Decanter and Disc-Stack Centrifuge for Fish Meal

The other method is a two-step process using a 2-phase decanter centrifuge as the first step to de-sludge the process fluid. The decanter separates the fish meal solids from the oil and water. The oil and water fluid passes through a three-phase disc-stack centrifuge in the following step.

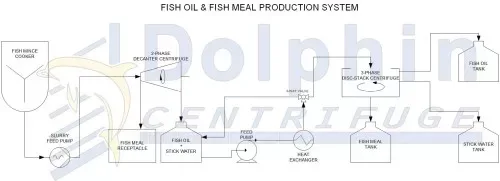

The following diagram shows a fish oil and fish meal processing plant designed by Dolphin Centrifuge.

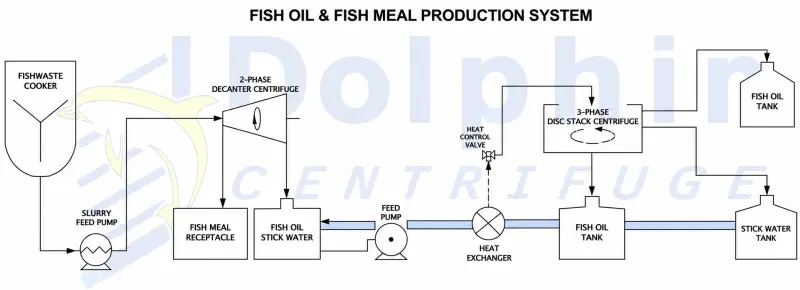

Fish Meal Process Flow Diagram
Fish Meal Process Flow Diagram

The disc-stack separator exerts a higher centrifugal force than the decanter, separating the fine solids and the oil from the stick water continuously. The separator discharges the fish oil and stick water through independent outlets while intermittently ejecting the fine fish meal solids.

If you have simple, routine questions: We have condensed our 40+ years of disc-stack centrifuge experience into 101 Frequently Asked Questions about Disc Stack Centrifuges!

Further evaporation concentrates the separated stick water into a thick syrup. Mixing this stick-water slurry with the strained fish meal produces the final fish meal product.

Polishing Centrifuge

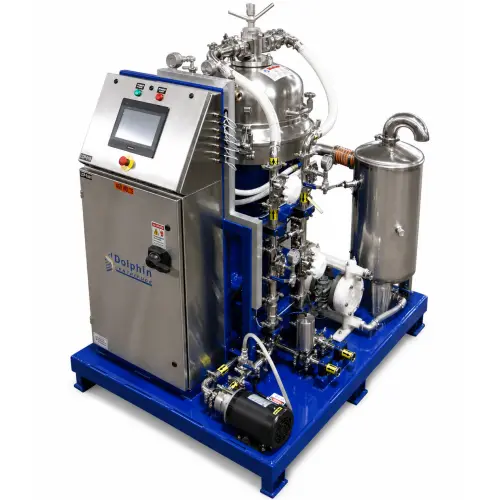

Dolphin Centrifuge stainless steel module with a three-phase Alfa Laval disc stack centrifuge separating fish oil from water
Stainless Steel Polishing Module featuring an Alfa Laval Disc Stack Centrifuge

A fish oil polishing centrifuge separates the fine suspended fish meal particles and stick water to produce clarified fish oil. The fish oil produced by the tricanter centrifuges contains residual water and fine suspended particles due to the lower centrifugal force exerted by a tricanter.

Fish oil polishing centrifuges are disc-stack-type centrifuges in stainless steel construction. They could be 'manual-clean' or 'self-cleaning' type centrifuges depending on the level of contamination. The higher g-force generated by a disc-stack centrifuge, up to 7,000 g's, is adequate to separate particles down to 0.5µ level and all remaining free water.

Need Help With Your Fish Processing System?

Our engineers will evaluate your fish oil or fish meal application and recommend the optimal centrifuge system. Sample testing available.

Fish Meal Decanter Specifications

The accompanying image shows a Dolphin fish meal module built around an Alfa Laval NX 418 decanter centrifuge. This model is ideal for processing up to 8 Tons per hour of minced fish and water mix. Alfa Laval builds the same 418 frame as a three-phase machine, the UVNX 418, for plants that separate fish oil, stick water, and meal in a single pass.

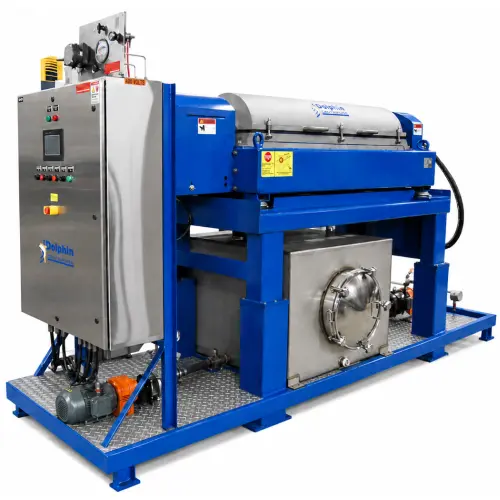

Fish meal decanter module by Dolphin Centrifuge featuring an Alfa Laval NX 418 stainless steel decanter centrifuge
